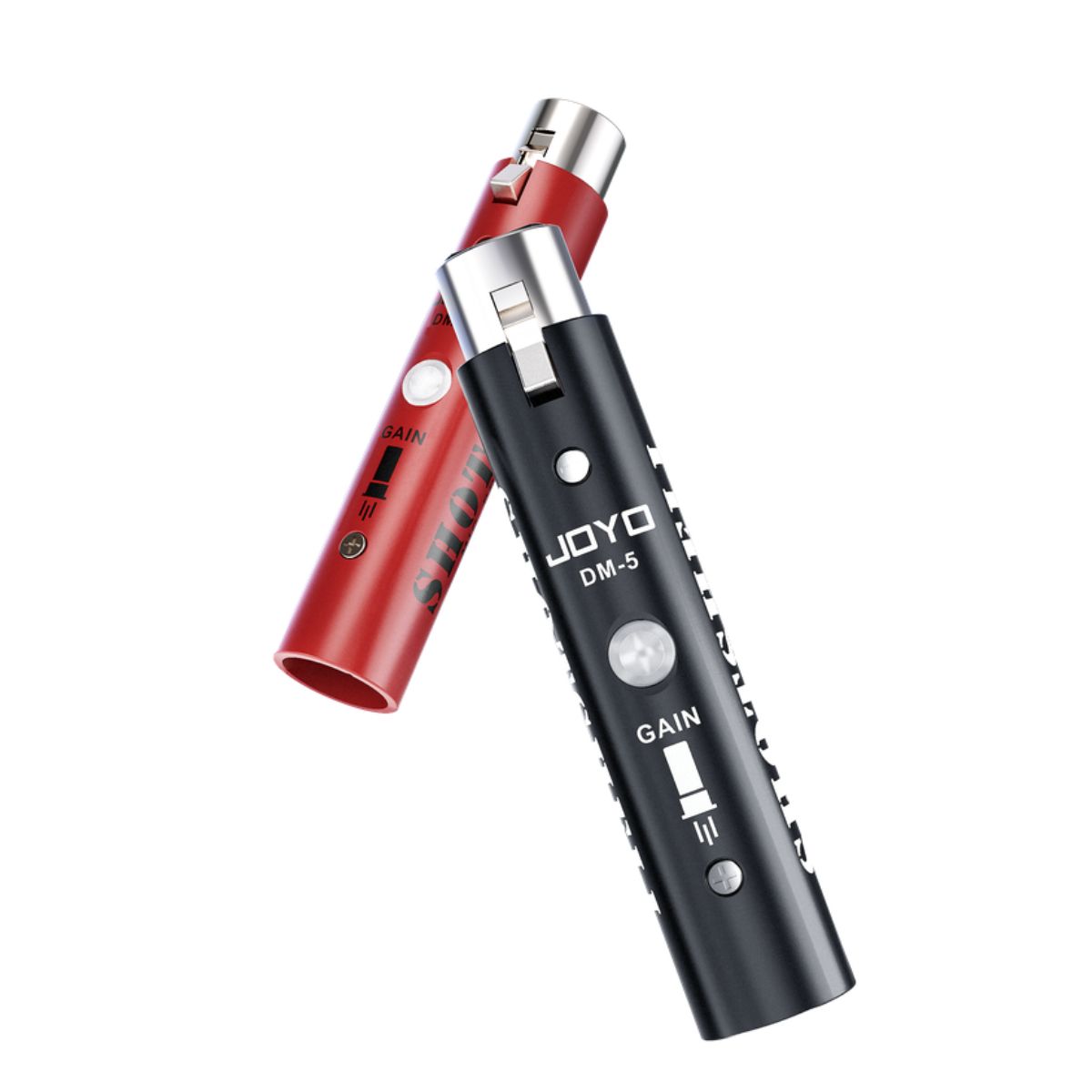

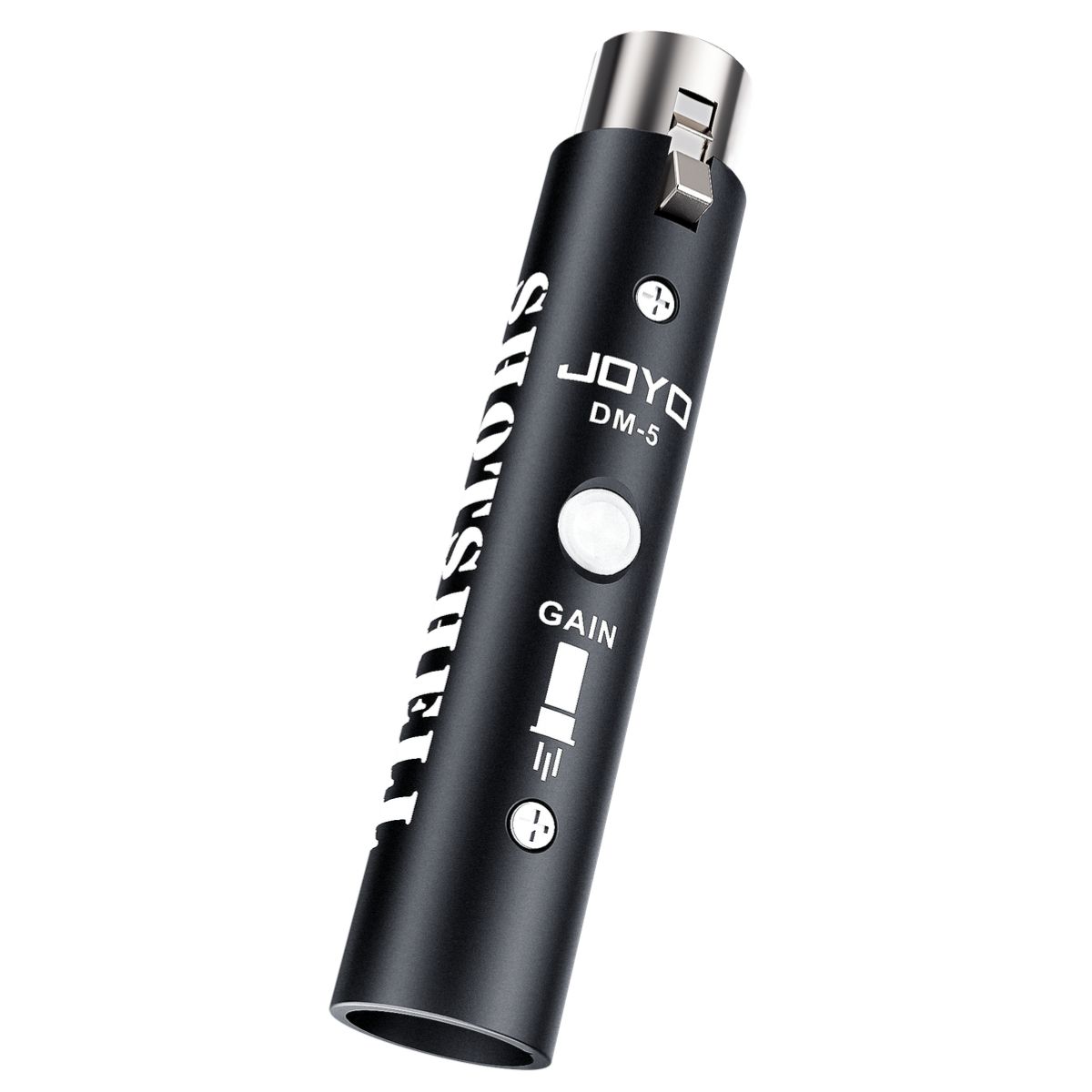

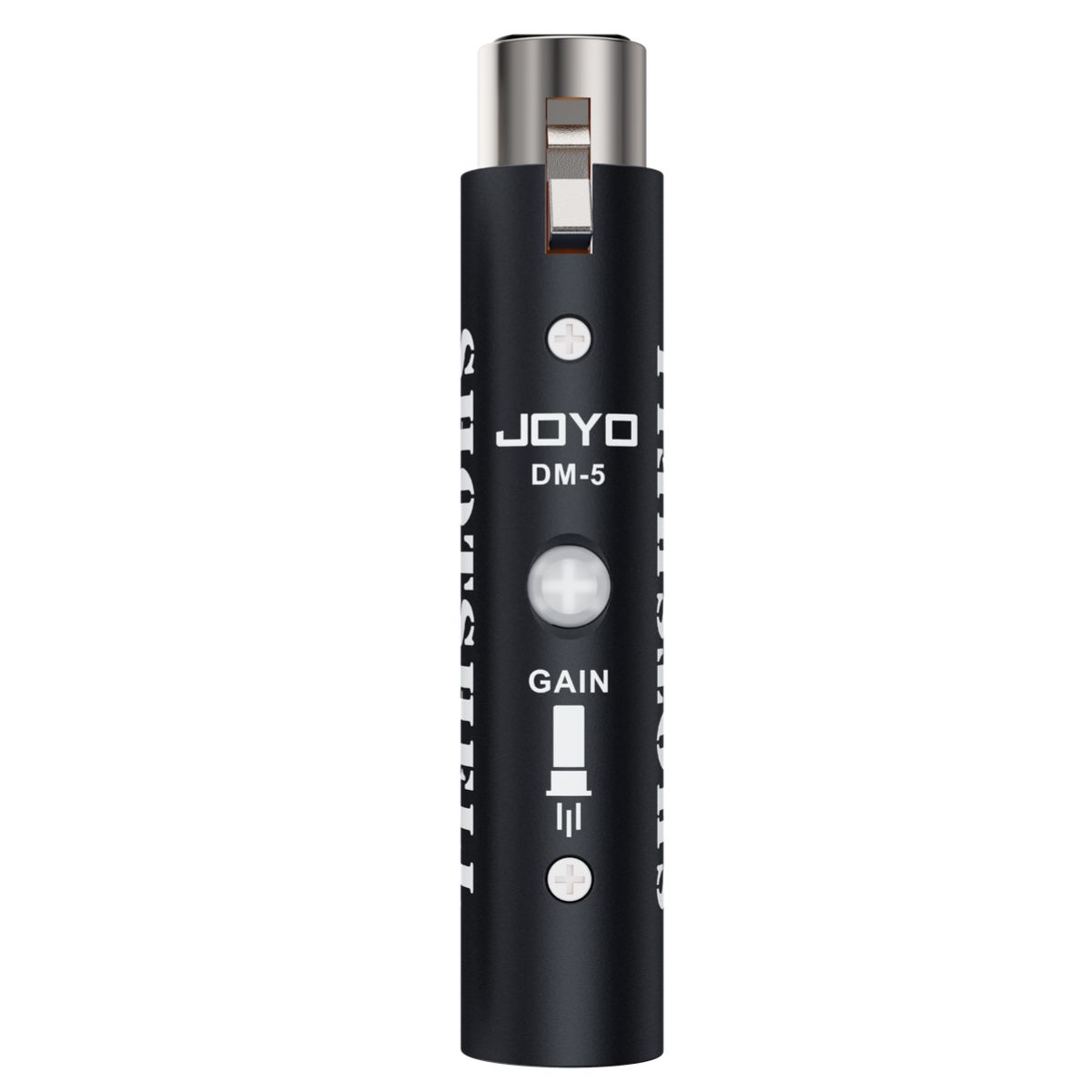

Joyo DM-5 – Shotshell Microphone Preamp
A compact, high-quality microphone preamplifier designed to boost your mic signal without adding noise or distortion. This mini inline “shotshell” preamp is the perfect tool for musicians, sound engineers, and podcasters who need a clean, powerful signal without using bulky studio gear. Main Features Switchable gain boost: +20 dB / +30 dB for different microphone types. Rugged, all-metal housing designed for durability and long life.
DM-5 MIC PREAMPLIFIER
Features
◆Frequency range:10-40kHz(±0.3 dB)
◆Gain: 20-30 dB(Load1KΩ)
◆The MAX Output Level(0.5%THD): 4.5 dBV(2.6 V)
◆Output Noise Level: 10μV(JlS-A)
◆Power:48v, according tolEC 61938
◆Electrical Impedance:135Ω
◆Recommended Load lmpedance: >1KΩ
◆Current consumption: 2.9mA
◆Connectivity: 3-Pin Male/Female XLR connector
◆Dimensions: Diameter:19mm
◆Length: 95.5mm
◆Weight: 80g
◆Attached accessory: owner’s manual,
◆USB charging cable
