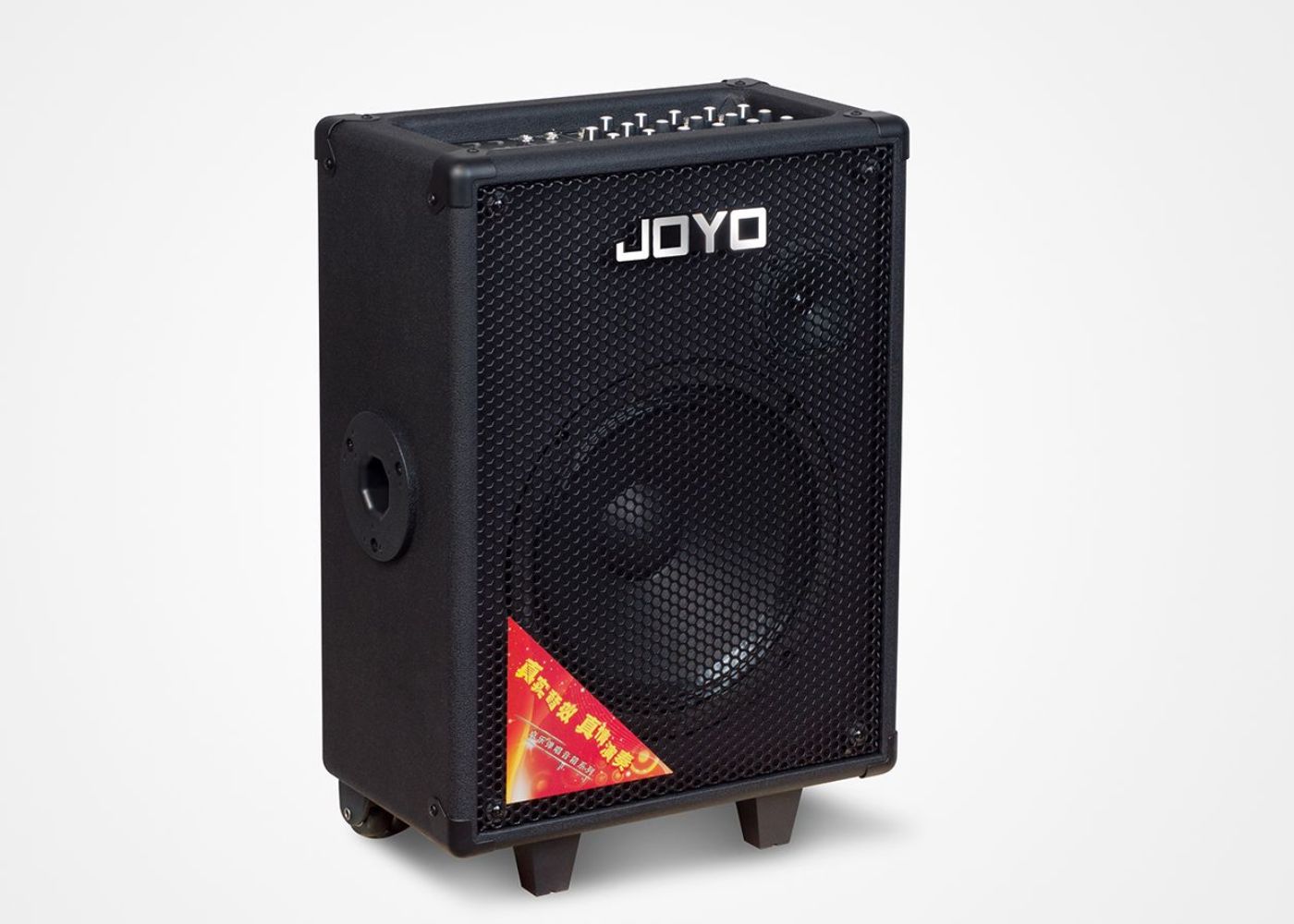

JOYO JPA-863 | Chargeable Bluetooth Busking Amplifier
€290.00
This great value JPA863 chargeable bluetooth amplifier features a dual channel Class D power amplifier chip, with output power of 30W(RMS).
10 in stock
This great value JPA863 chargeable bluetooth amplifier features a dual channel Class D power amplifier chip, with output power of 30W(RMS).The Class D power amplifier chip is characterized by high efficiency and energy saving, and therefore enhance battery’s durability.

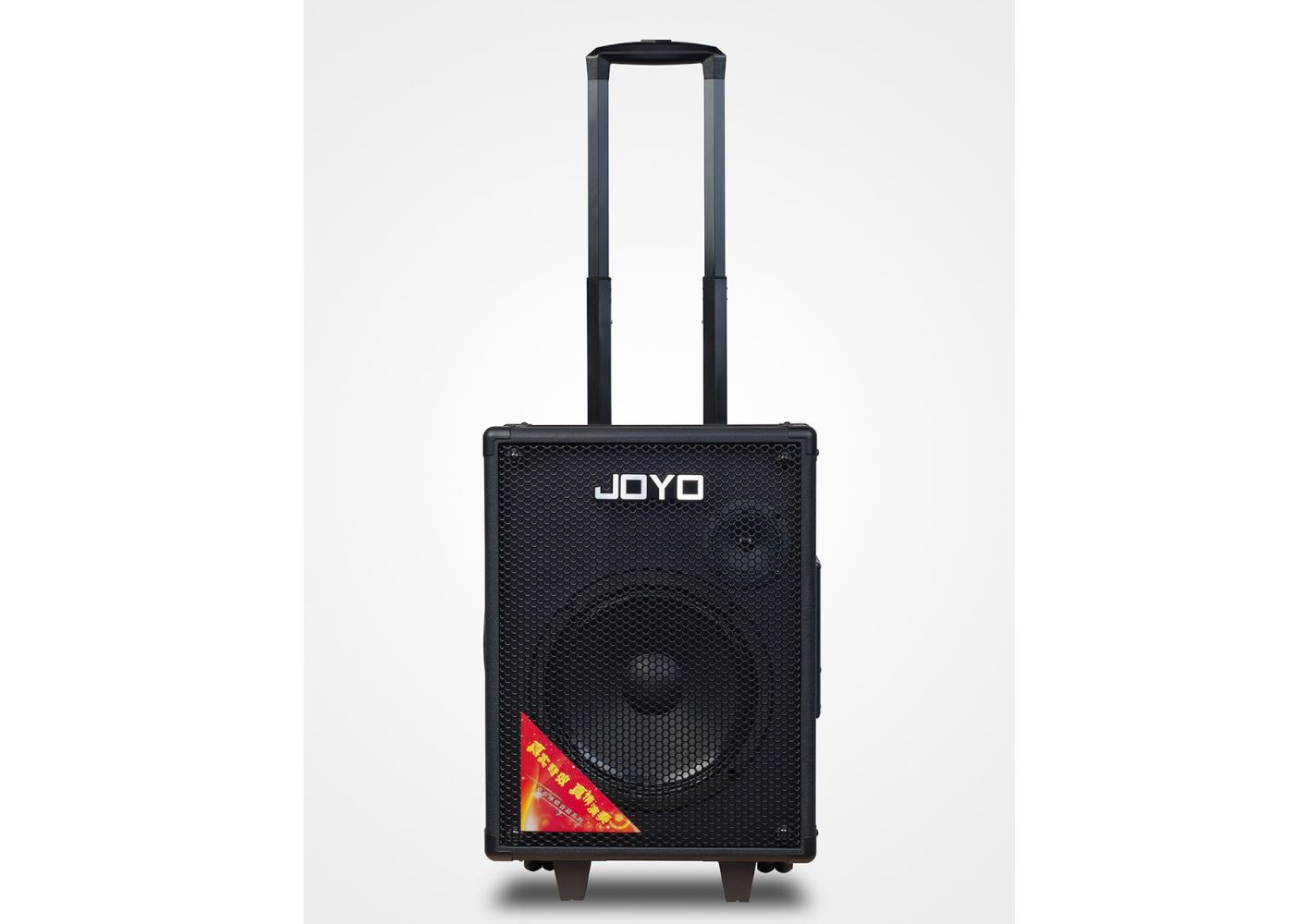

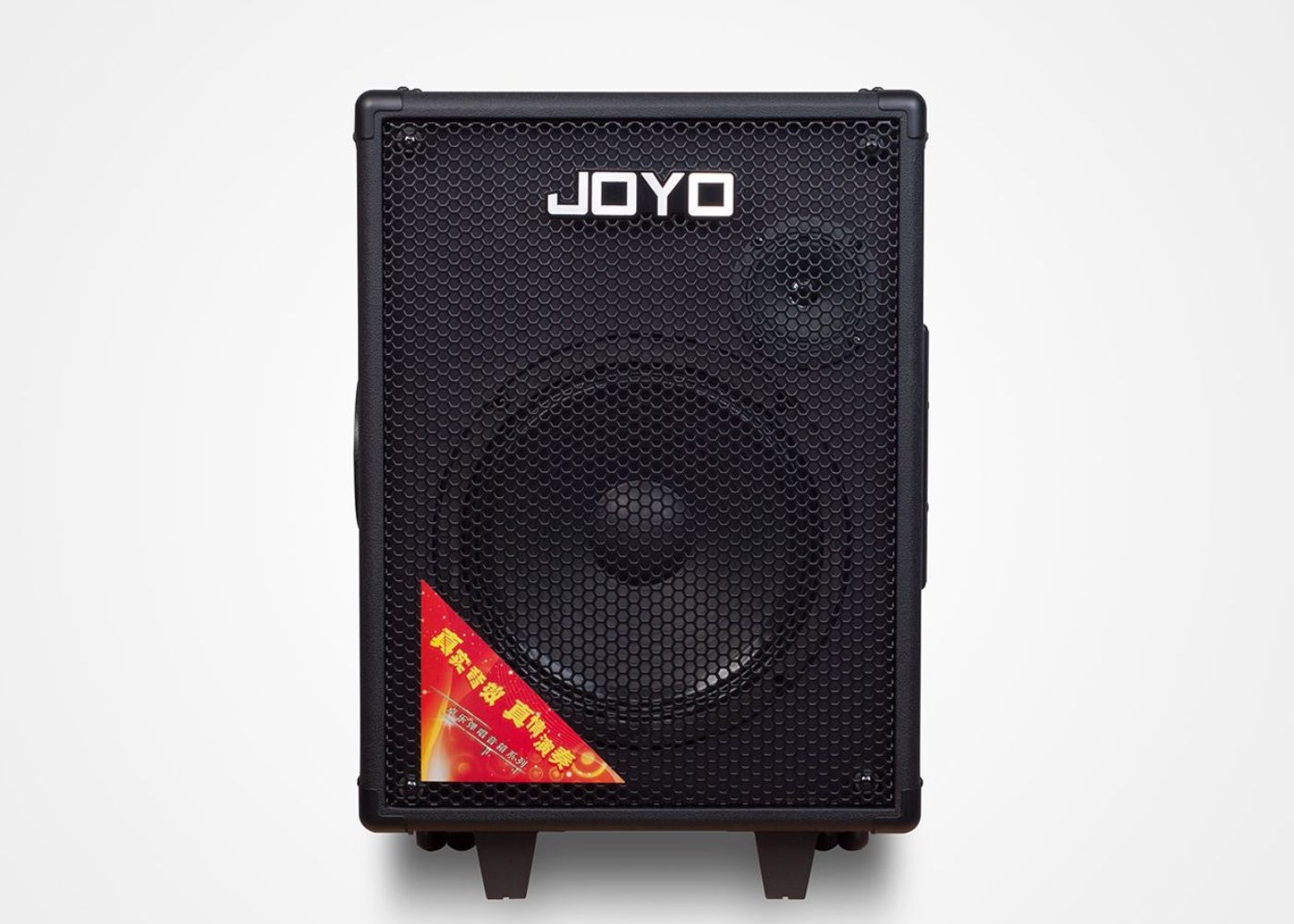

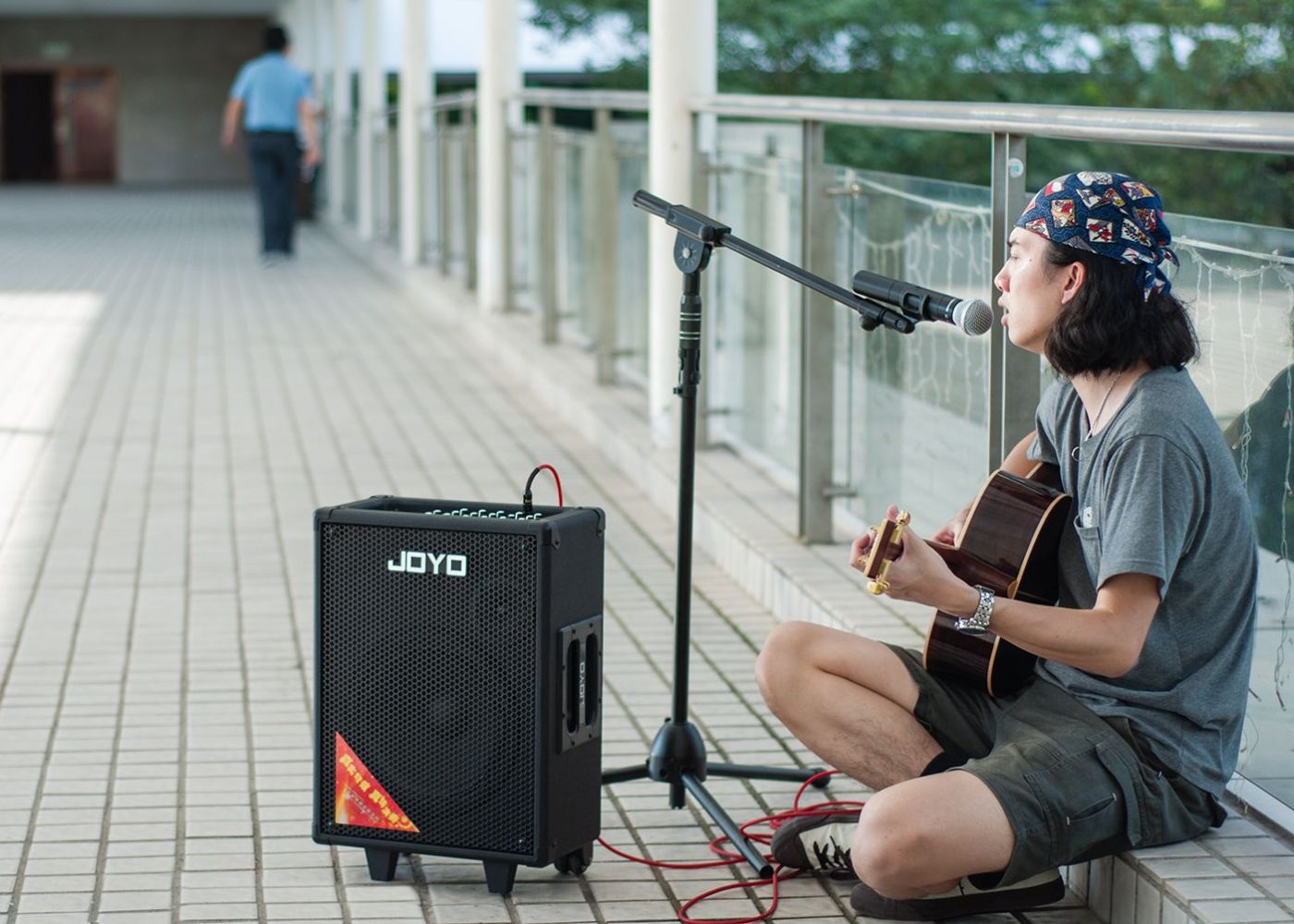

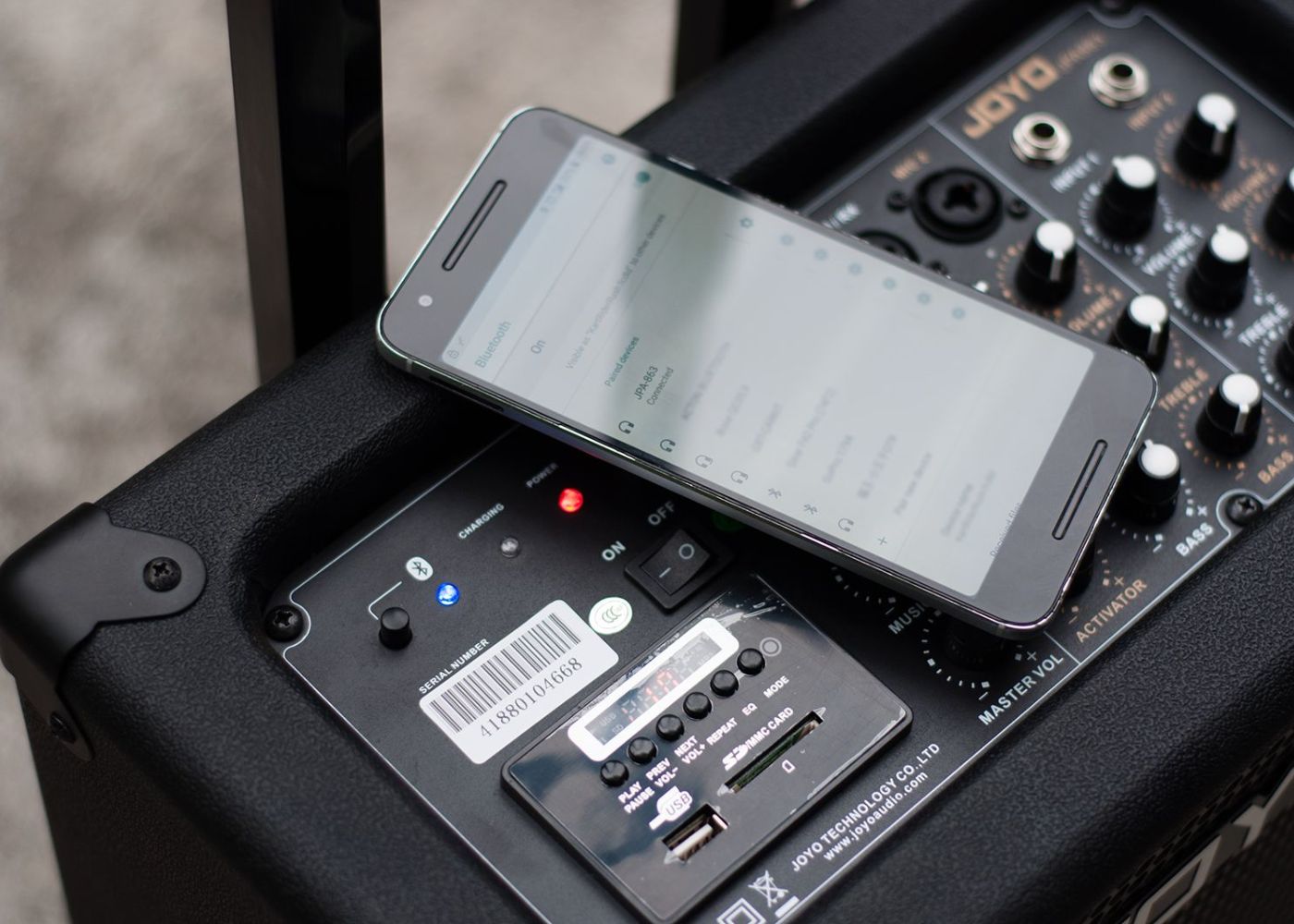

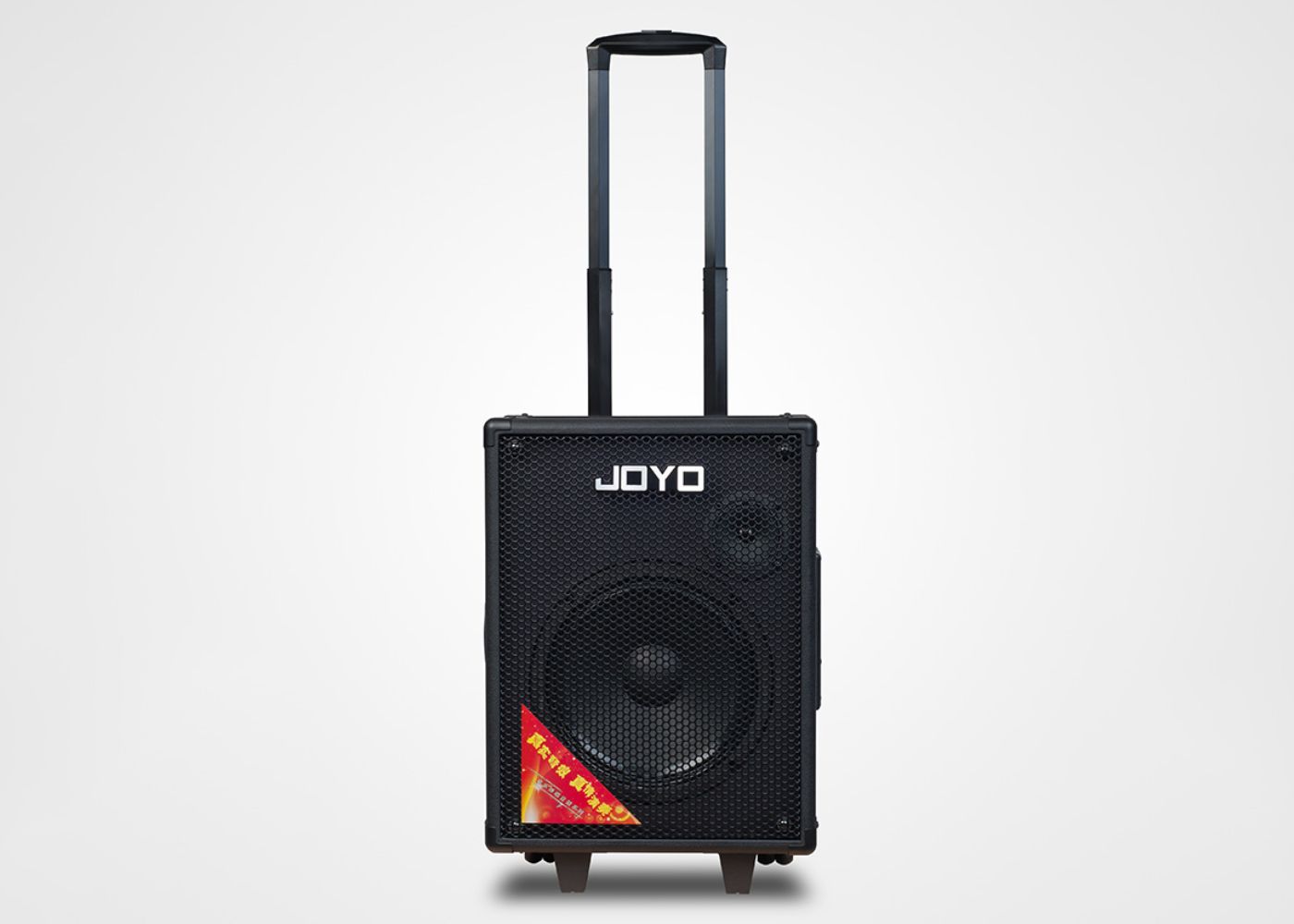

JPA863 includes one matched 10” 4Ohm speaker and one 3” 4Ohm speaker. With a built-in leadacid battery, ensuring lightweight and portable and thus suitable for different occasions. Perfect for small venues such as club, home and studio. It also features Aux In and Player functions, together with the Bluetooth function, it will be your best companion.

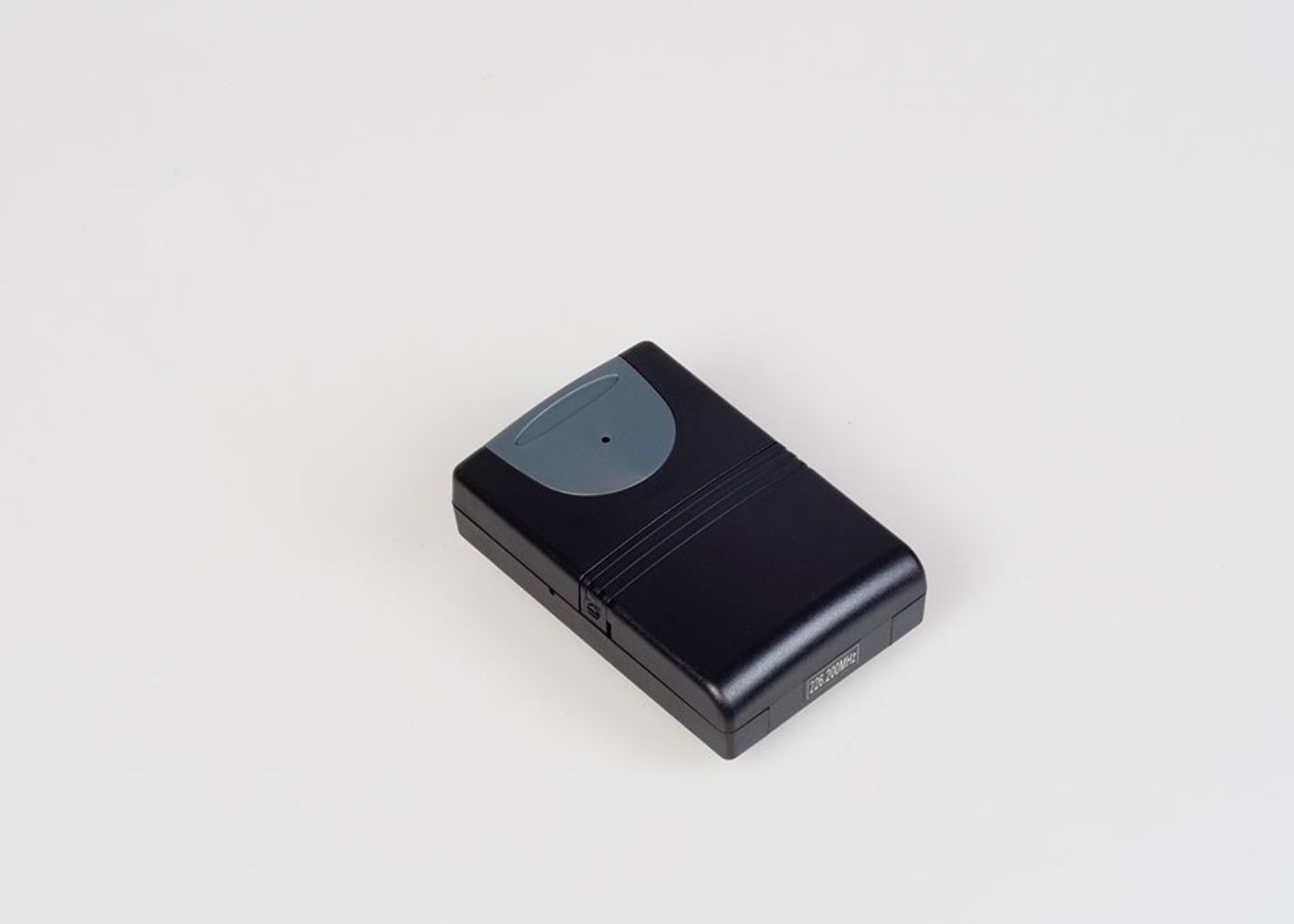

JPA863’s wireless microphone section, using VHF200-270MHz frequency range, is designed with crystal oscillator circuit, which ensures high frequency stability and anti-interference.

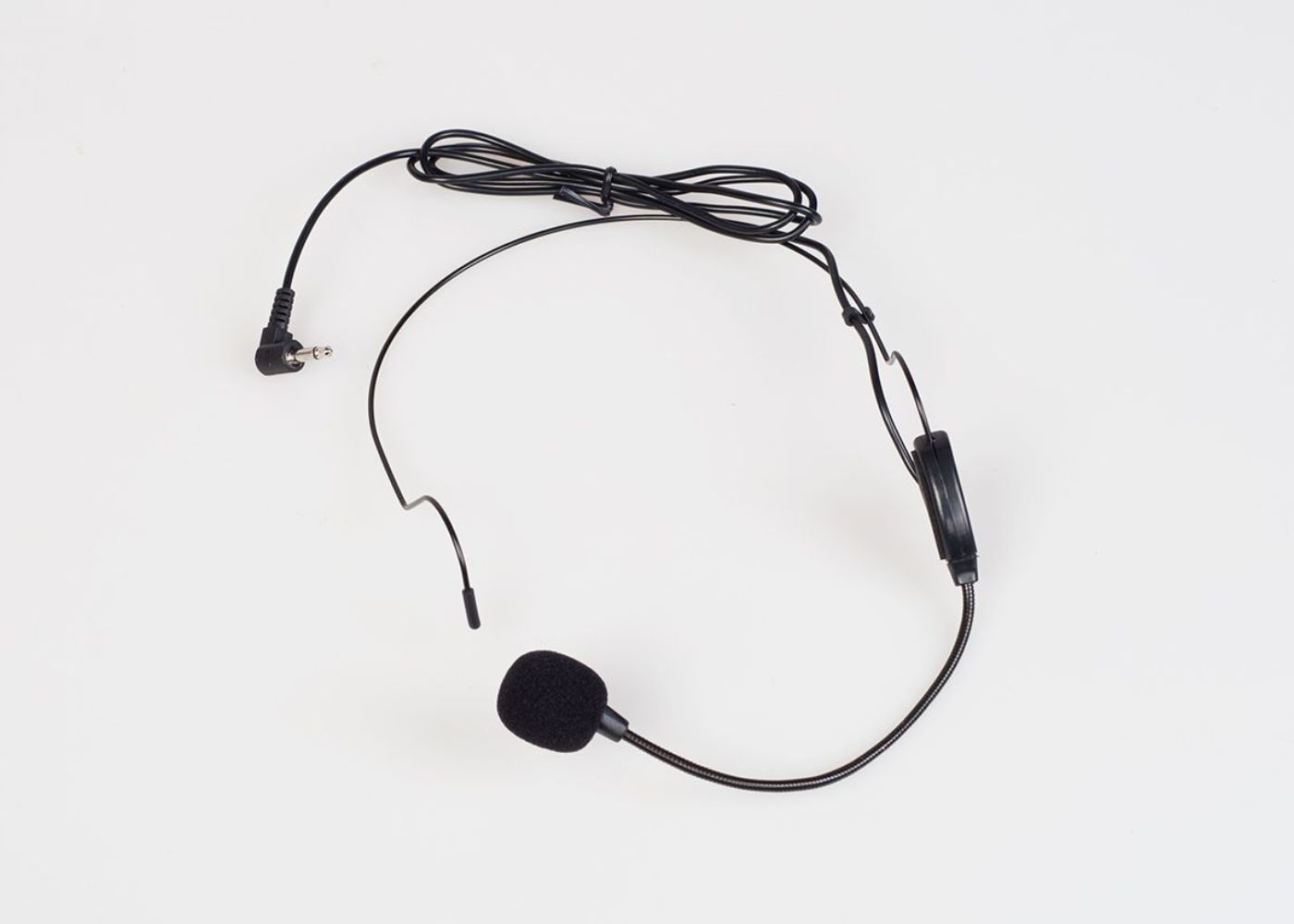

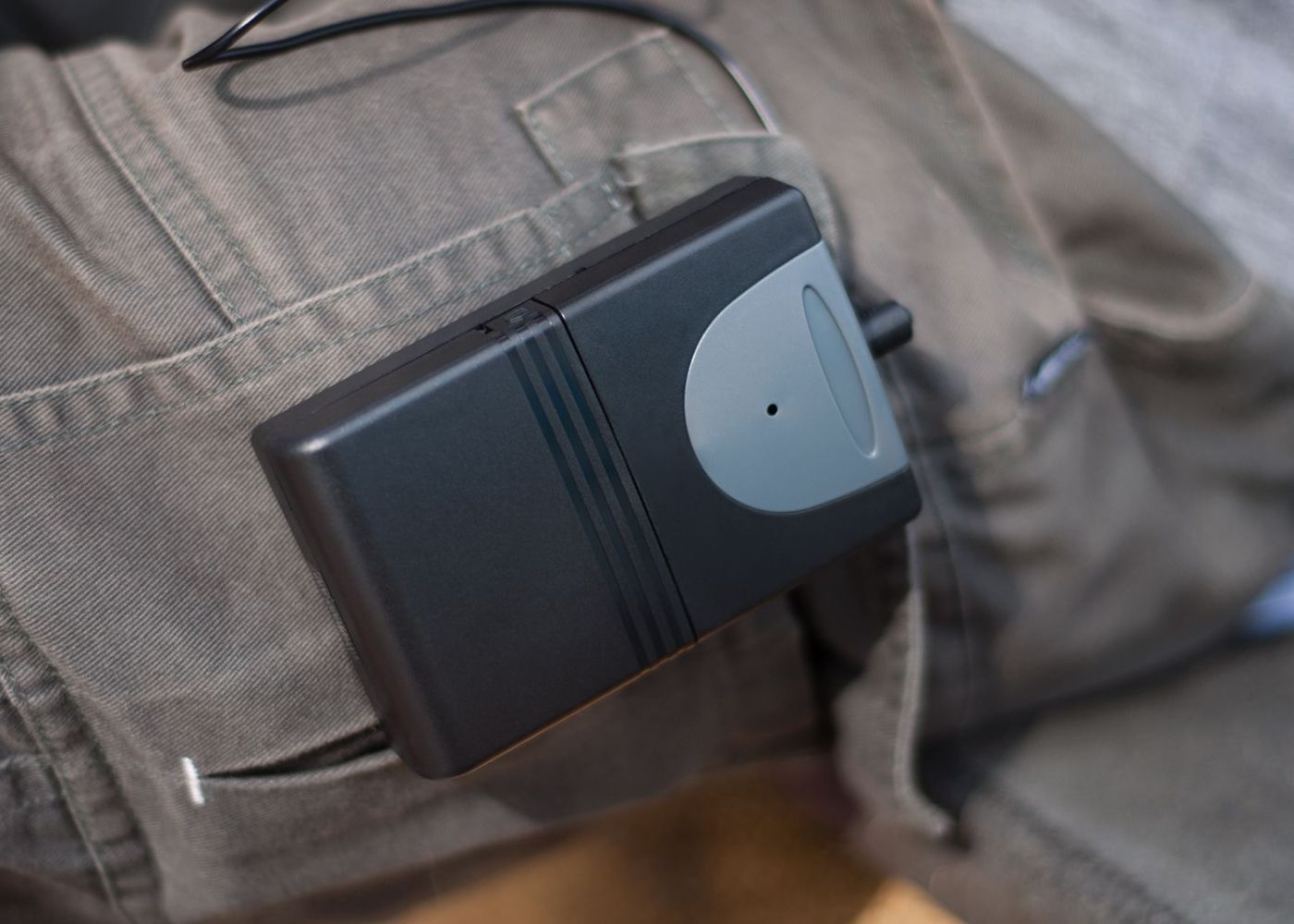

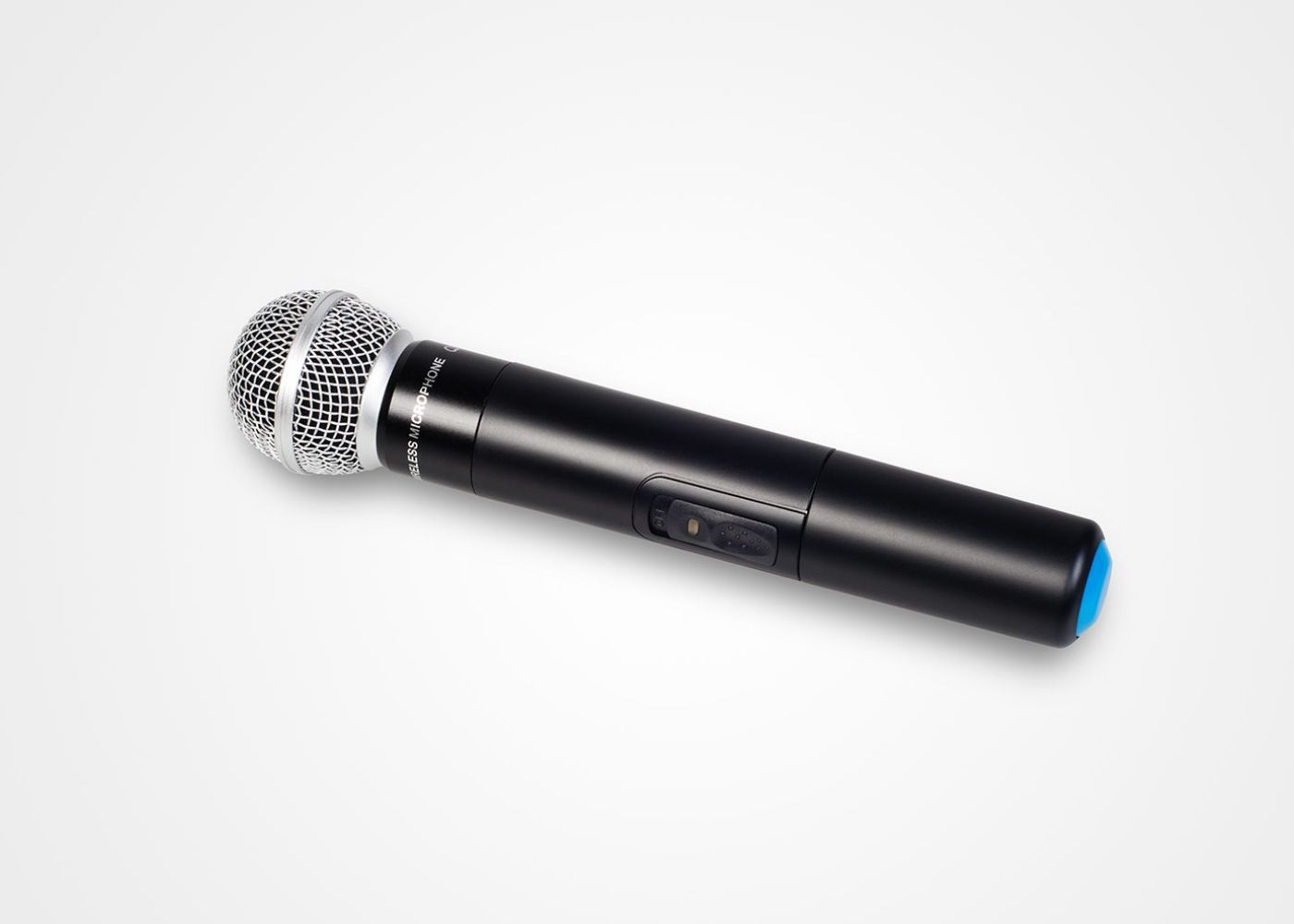

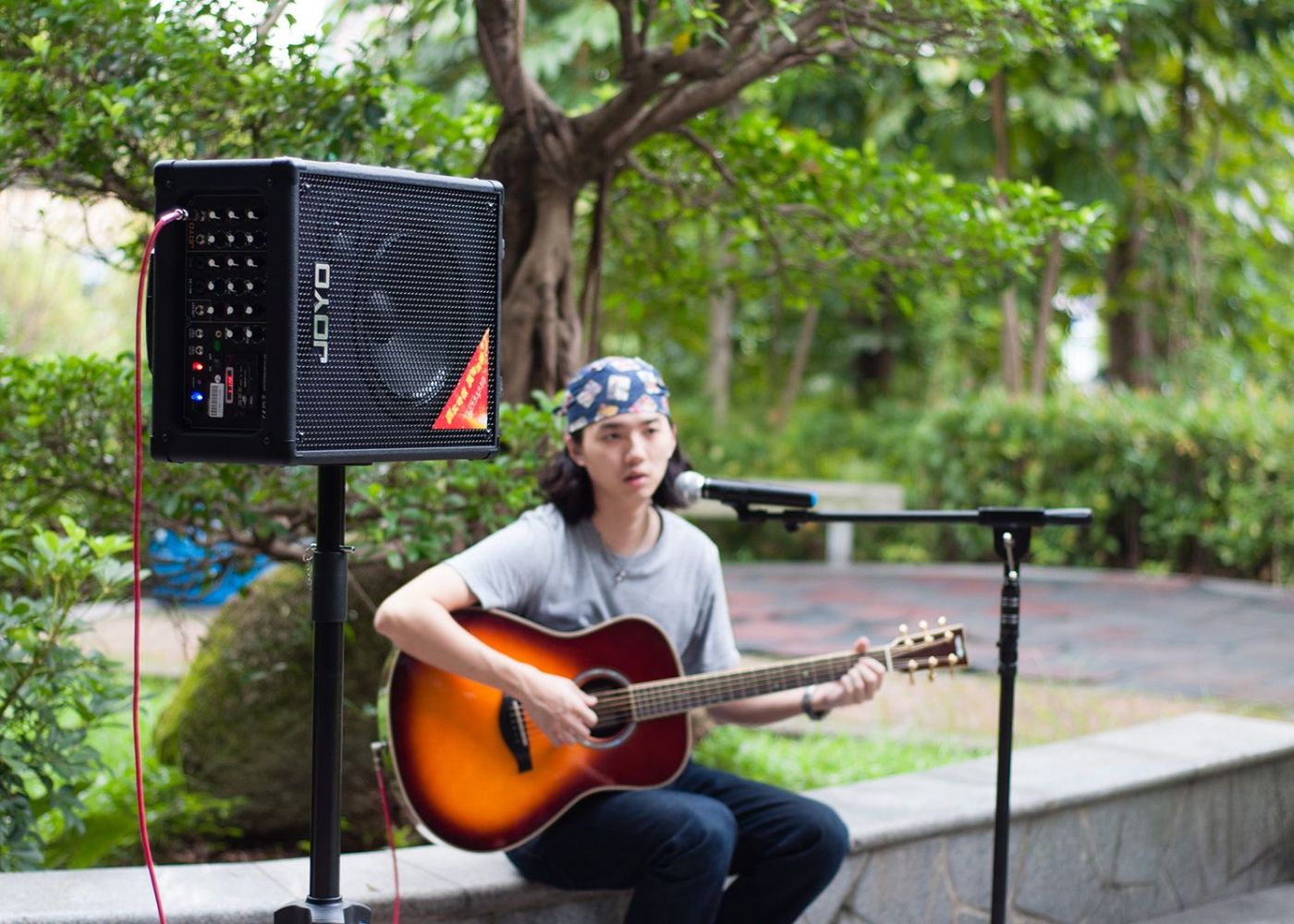

(Microphone, headset and transmitter included in package but no stands are included with this purchase. Any stands in images are for illustration of possible uses only)
SPECIFICATIONS
- Main Unit:
Frequency Response:50Hz—18 kHz
Peak power:120W
Sensitivity:95dB(1W/1M)
Speaker Impedance: 10″4 Ohm; 3″ 4 Ohm

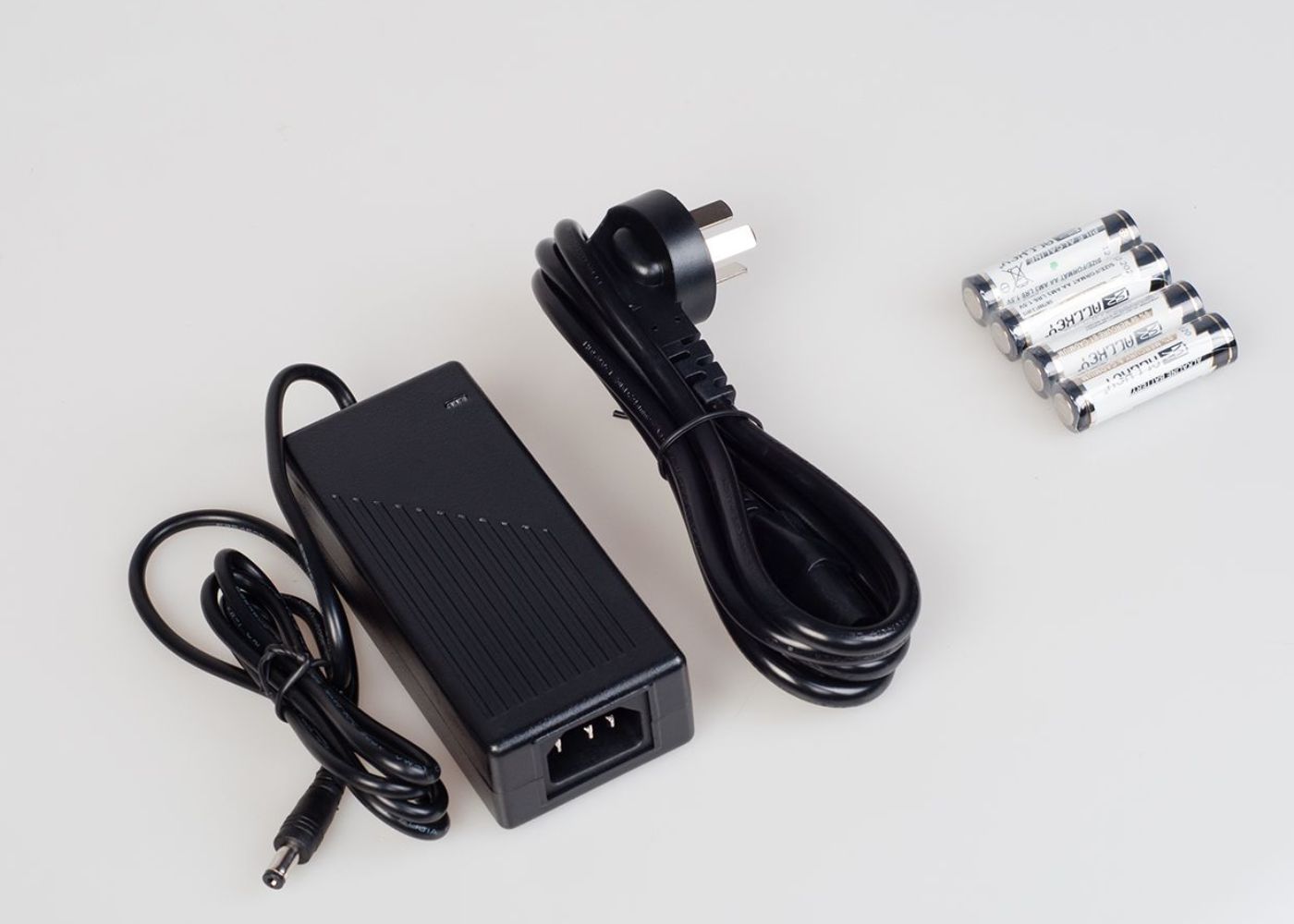

Power adapter: AC in 100-240V 50/60Hz
DC Out 15V/4A
DC Voltage: 12V7.0Ah(Lead-acid battery )
Maximum Current Consumption: 3.5A
Net Weight:14.1kg
Dimensions:360*245*520mm
- Overall performance:
Carrier Frequency: VHF200-270MHz
Harmonic Distortion:<0.8%
Frequency Stability:<±20PPM
Dynamic Range:>80dB
Frequency Response:60Hz—12kHz±3dB
Audio Output:0~±400mV
Temperature Range:-10℃~+50°℃
Operating Distance:50meters

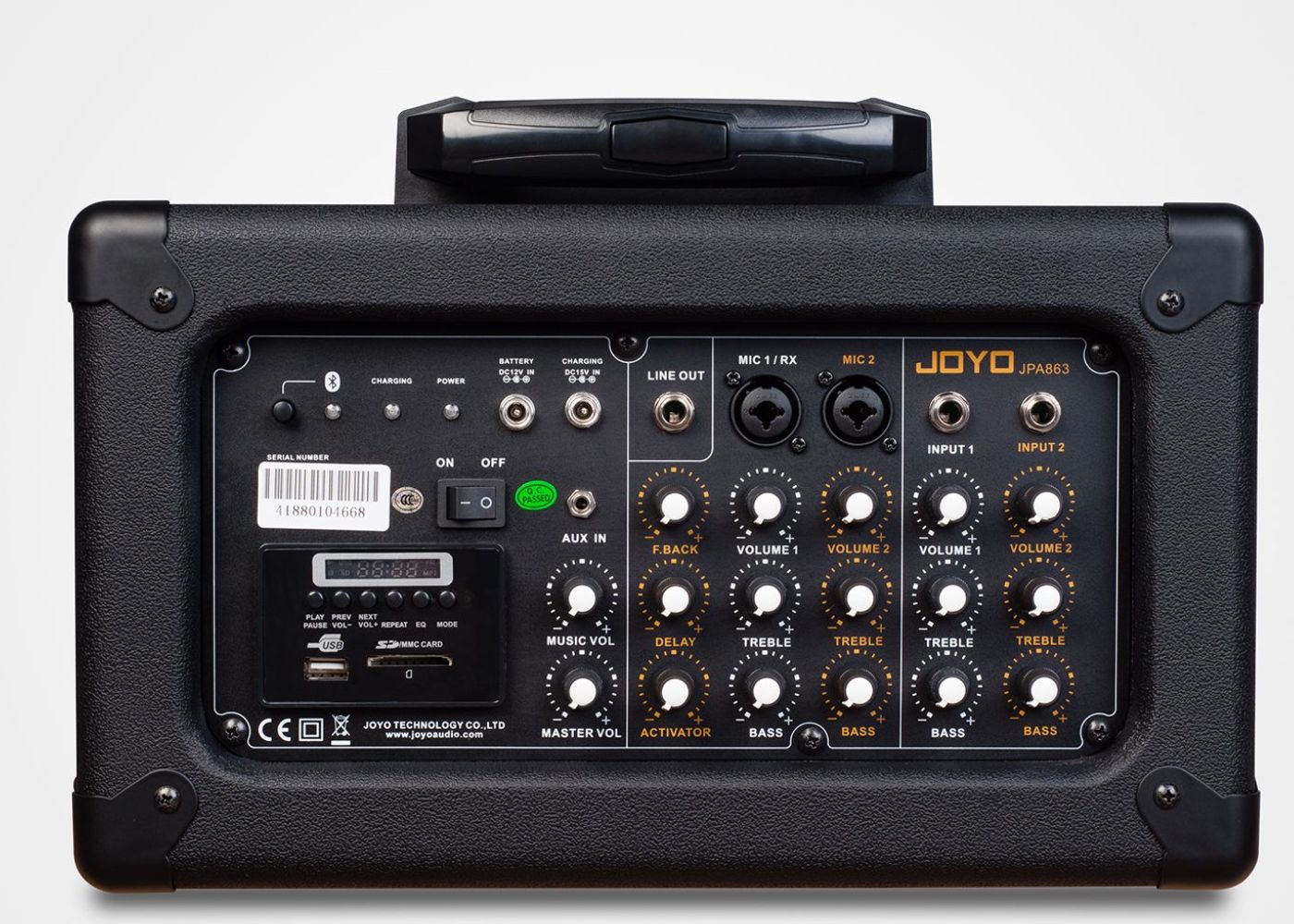

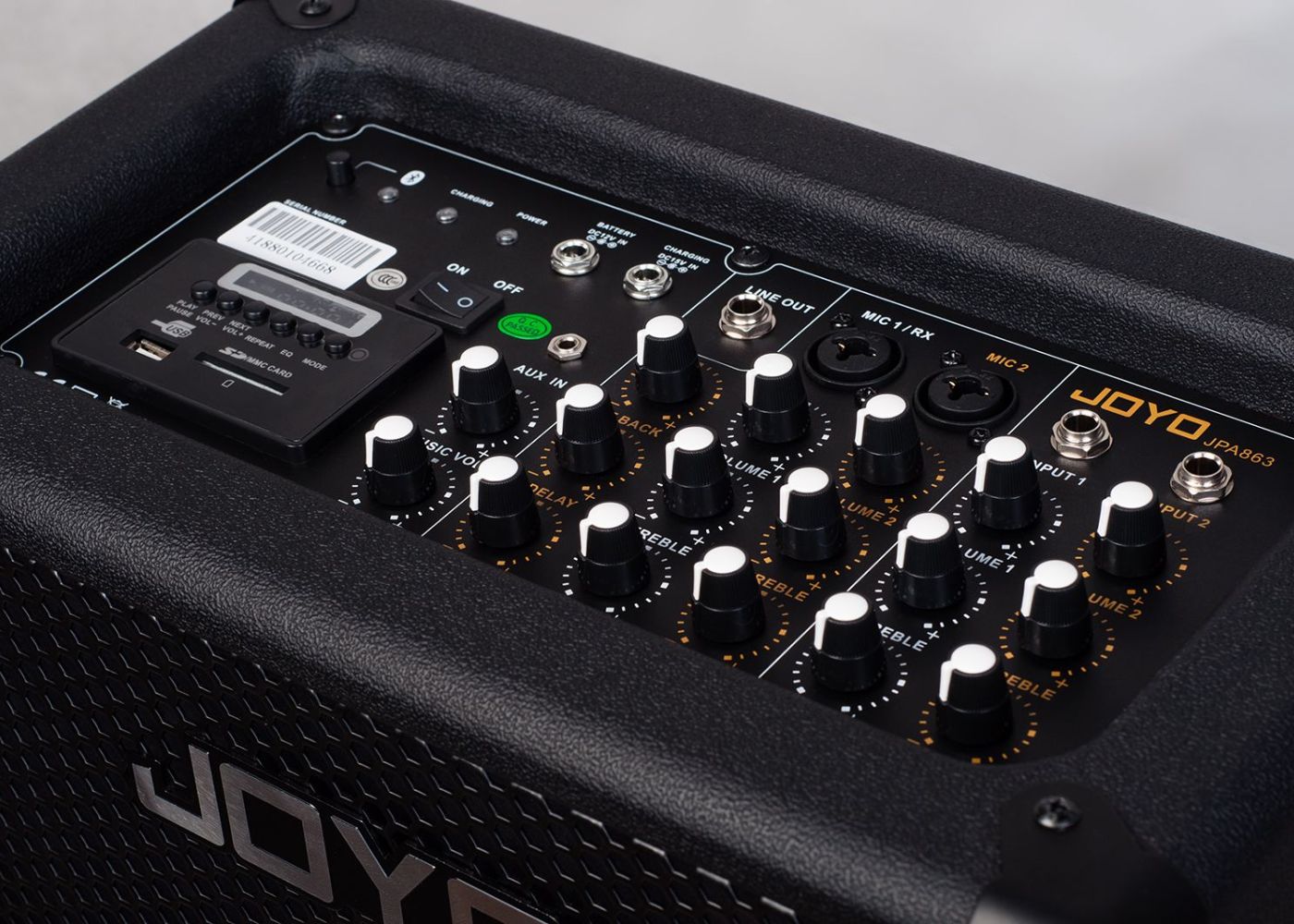

- Input Sensitivity:
Guitar Input1:-20dBu
Guitar Input2:-20dBu
MIC1:-40dBu
MIC2:-40dBu
- Wireless microphone:
Frequency Stability:0.05%(20PPM)
Launching Power:+13dB
Modulation Type: FM
Maximum Modulation Index:±20kHz
Upper Harmonics: less than dominant wave 60dB
Mains Voltage:9V Layer-built battery
Hours of use:10hrs
- Built-in wireless microphone receiver:
Pseudo Image Interference Ratio: >70dB
Consuming Power: 3W
Signal-to-Noise Ratio:80dB
Adjacent Channel Interference Ratio:>70dB
Receiving Sensitivity:12dB
De emphasis:50US
