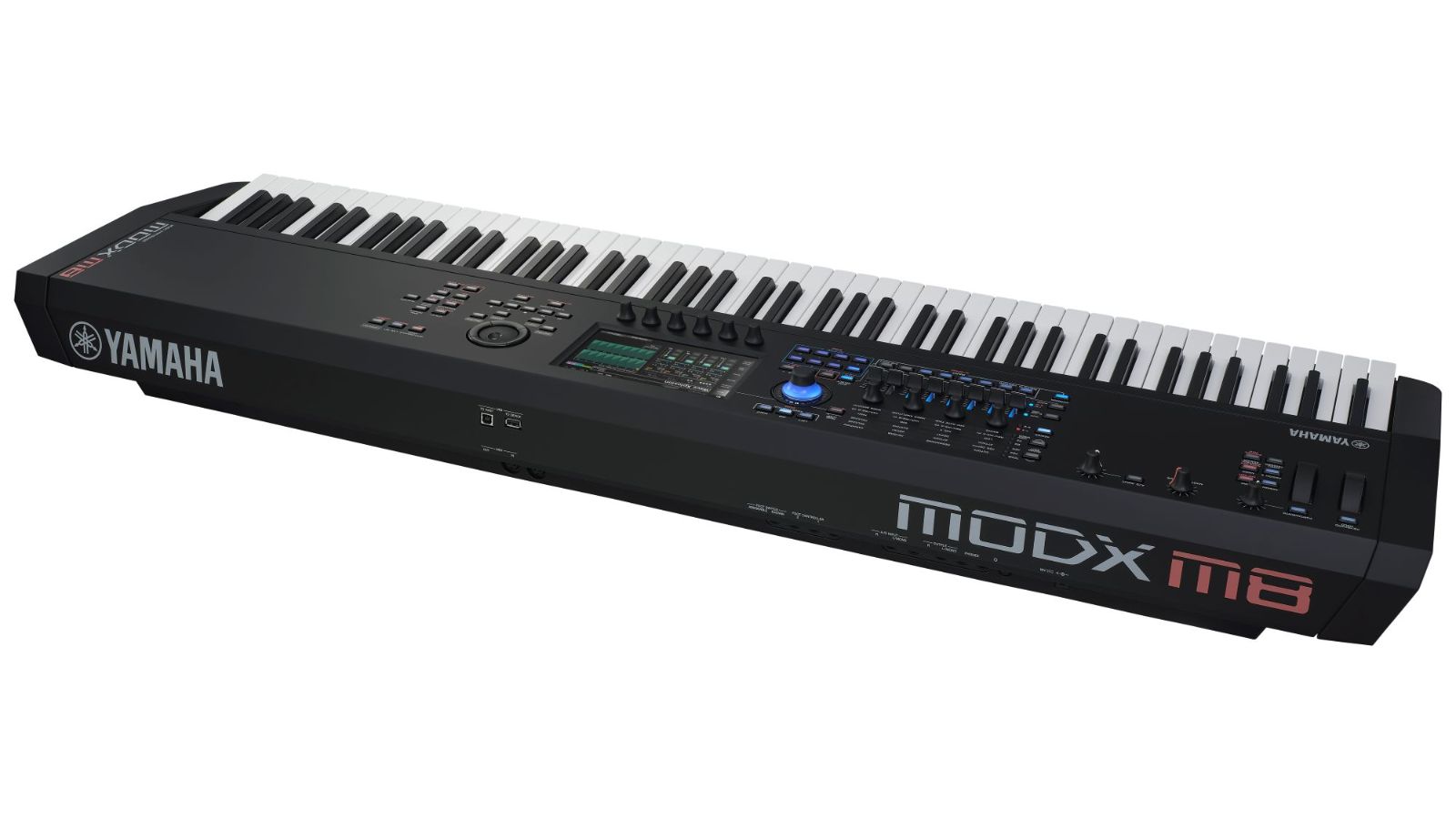

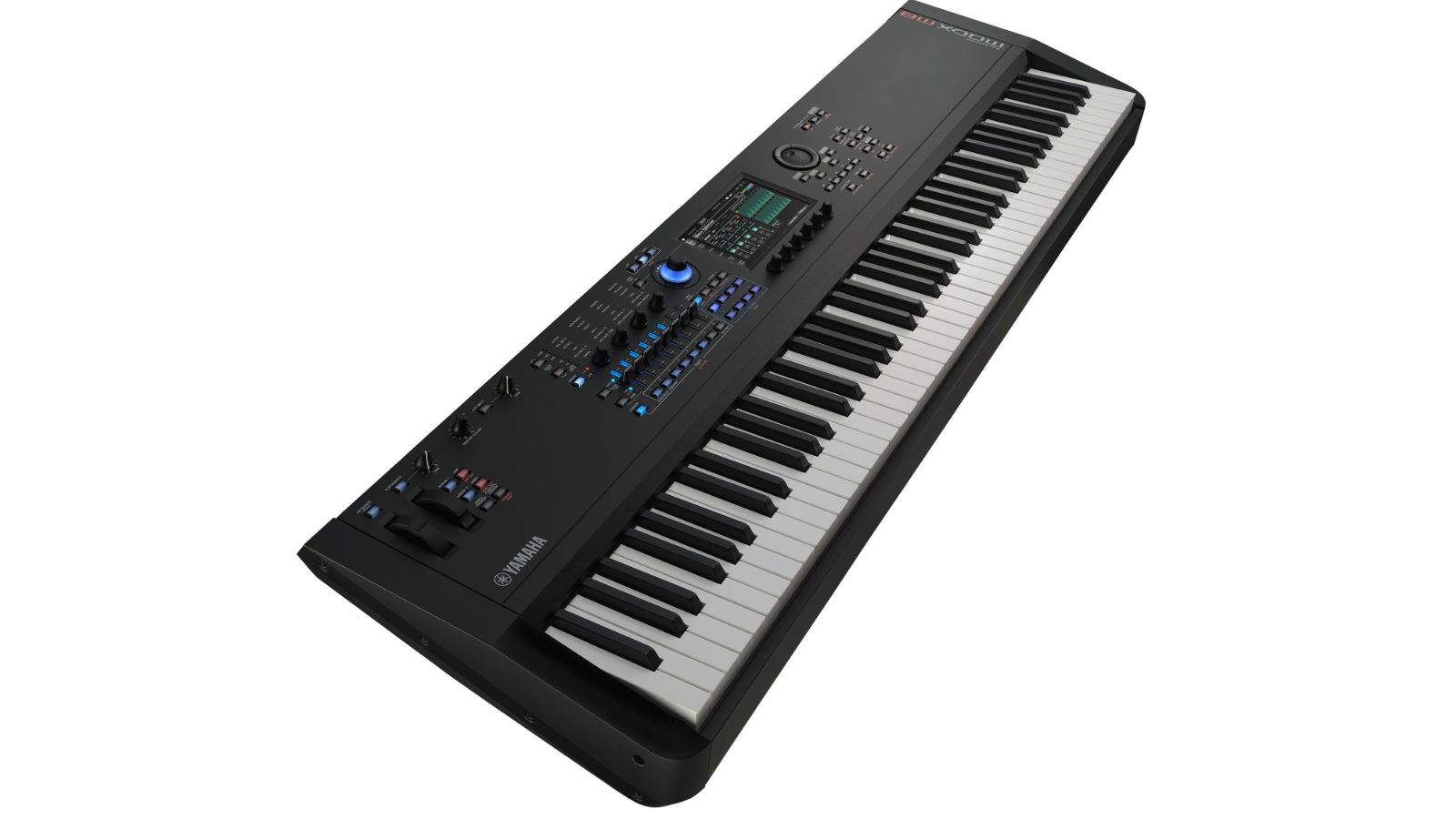

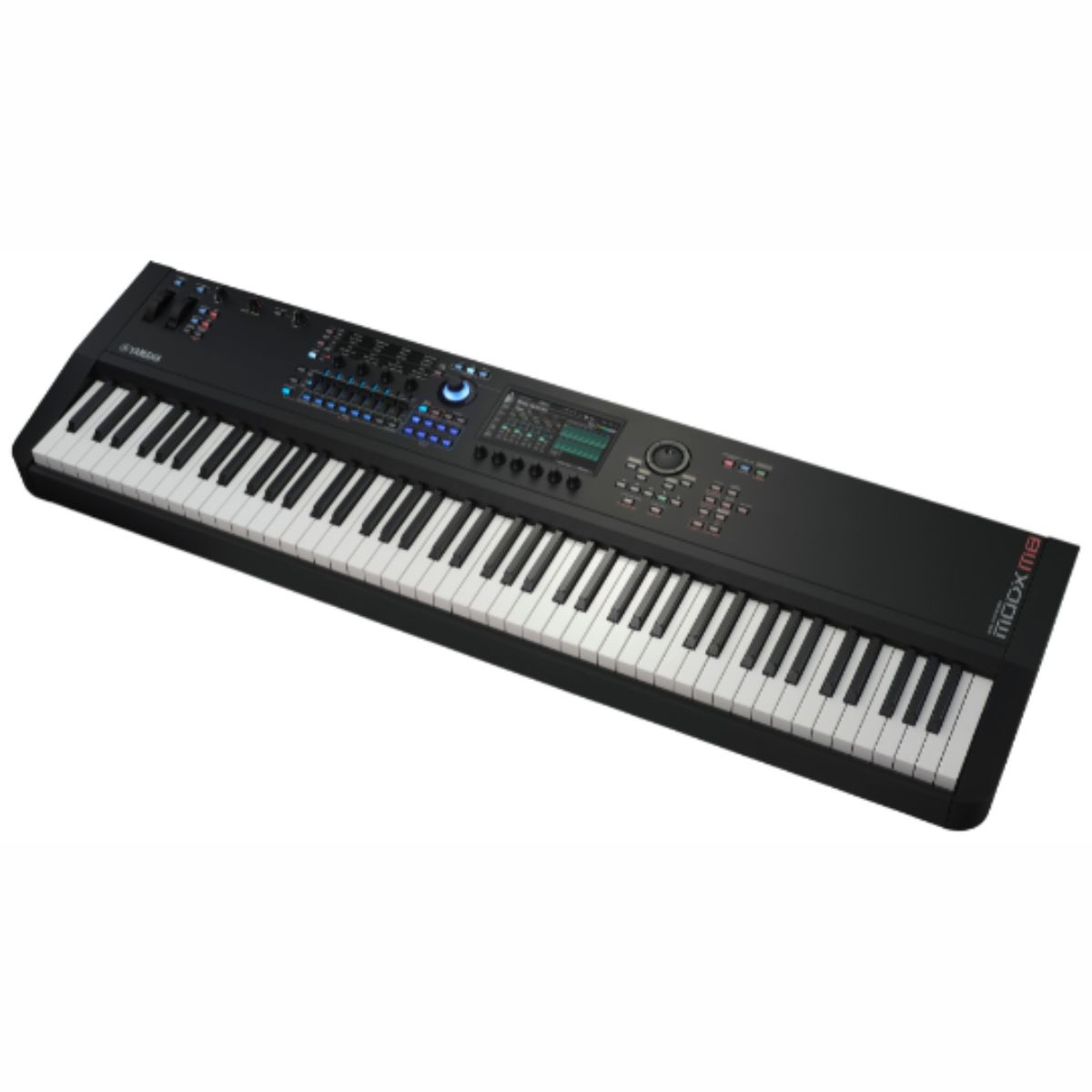

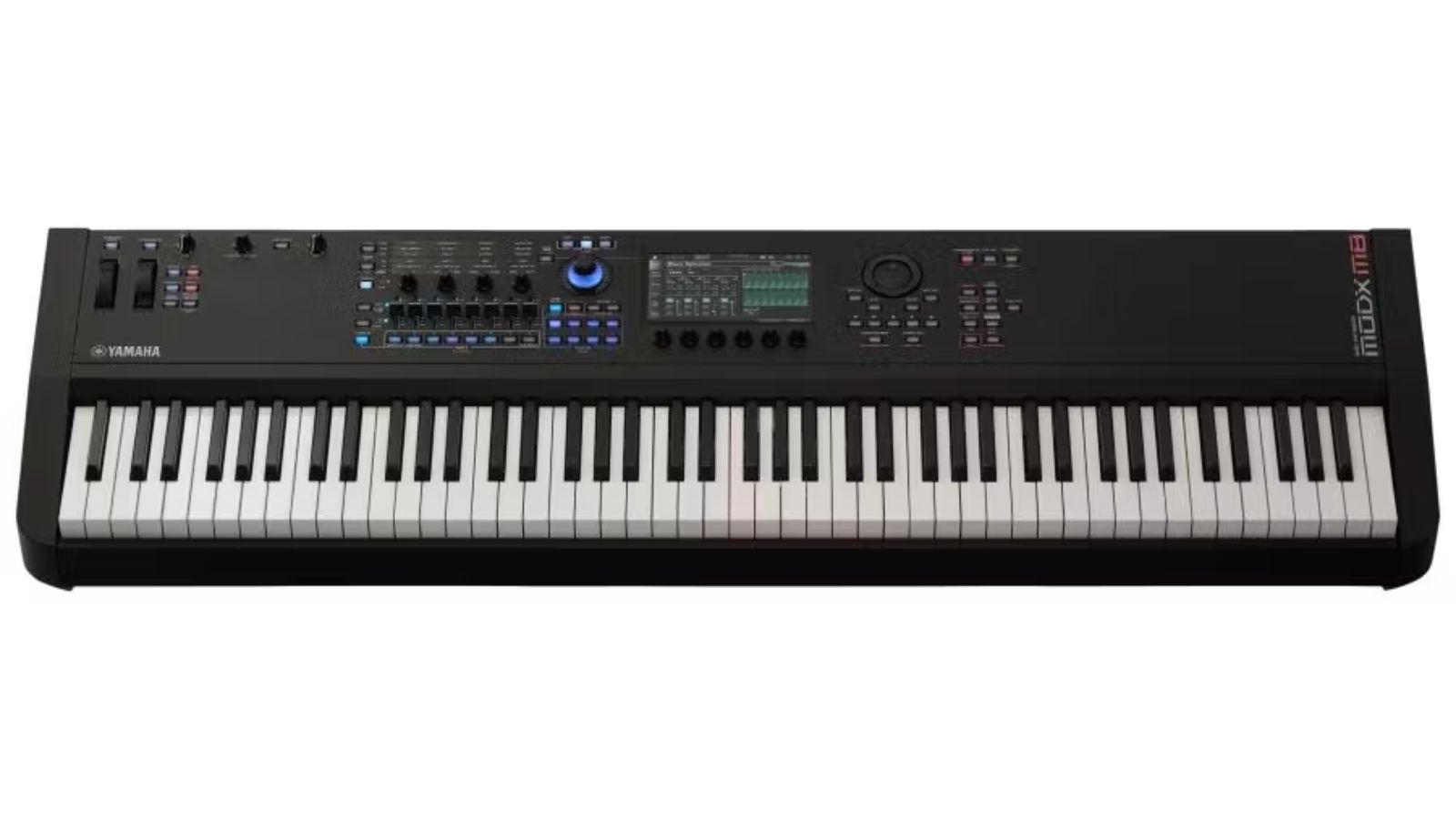

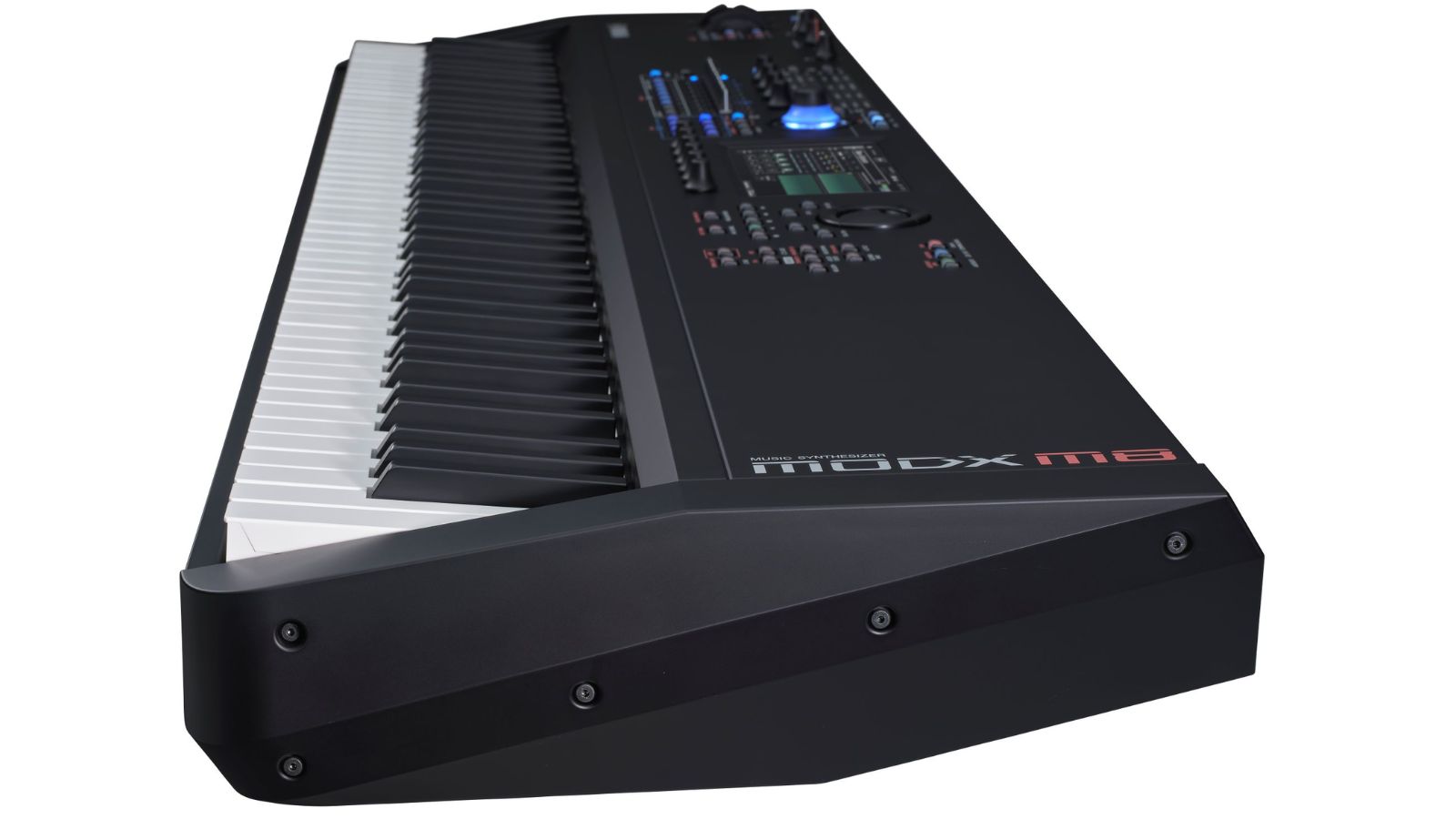

Yamaha MODX M8 | 88 note GHS Keyboard Synth | 268 note Polyphony

Keyboard

• 88 keys, Graded Hammer Standard (GHS) keyboard
• Initial Touch technology

Sound Engine

• AWM2: 128 voices polyphony, 10.7 GB preset waveforms, 1.9 GB user flash memory
• FM-X: 128 voices polyphony, 8 operators, 88 algorithms
• AN-X: 12 voices polyphony, 3 oscillators, 1 noise generator
• 3,427 preset performances, 256 preset live sets, 2,048 user live sets
• Motion Sequencer for real-time control
• 16-part multitimbrality plus Audio Input Parts (A/D In, USB)
• 18 filter types

Effects

• Integrated effects engine with 13 types of reverb
• Variation (91 types), Insertion A (91 types), Insertion B (94 types), Master (28 types)
• 5-band master EQ, 2 part EQs (3-band & 2-band)

Sequencer & Arpeggiator

• 16-track sequencer with 128 patterns and 128 songs
• Arpeggiator with up to 8 parts simultaneously
• 10,922 preset arpeggios, 256 user arpeggios

Controllers

• Pitch bend and modulation wheels
• 8 control sliders with LED bars
• 4 assignable knobs plus Super Knob
• 2 assignable switches, 8 scene switches
• Portamento switch and Portamento Time knob
• 6 display knobs

Display

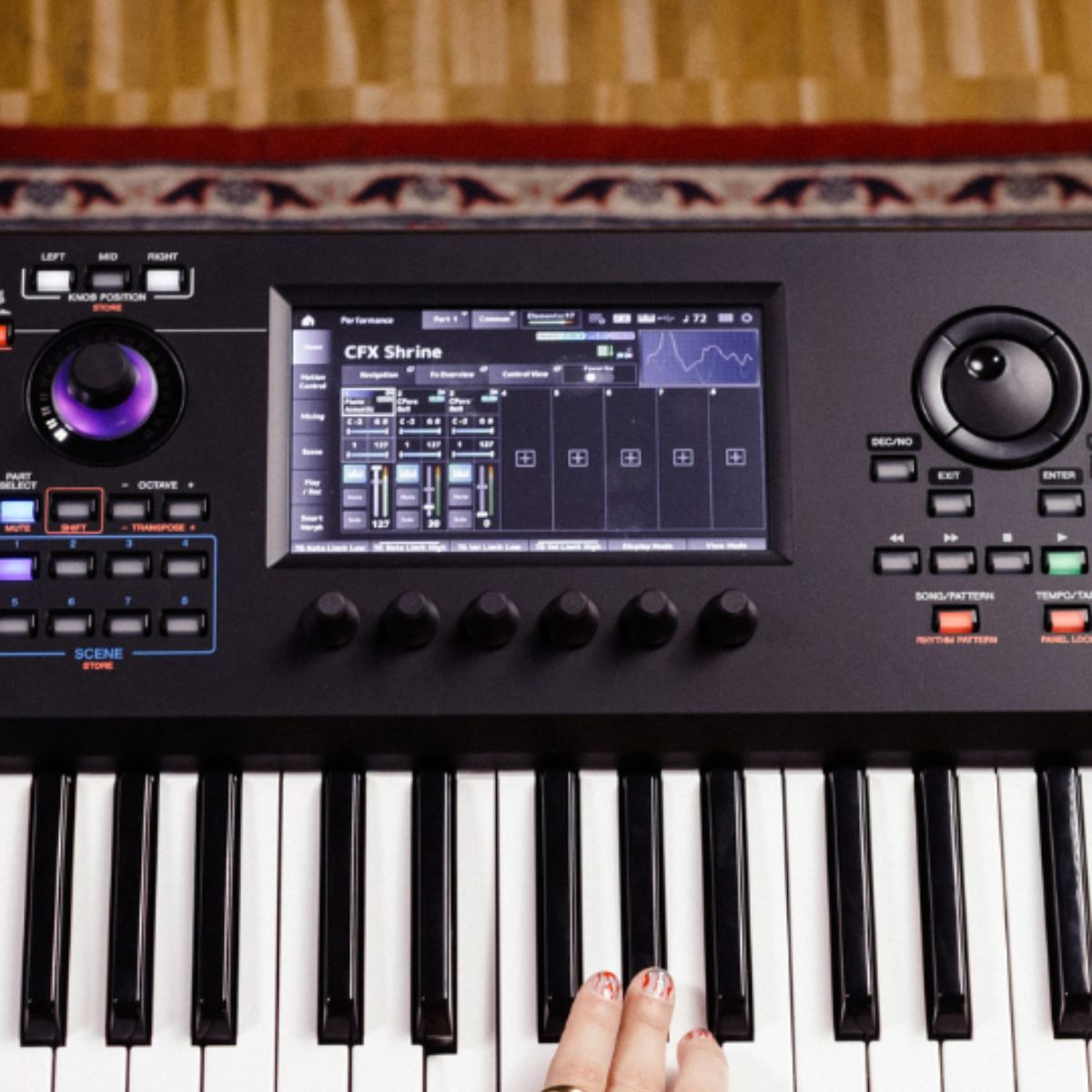

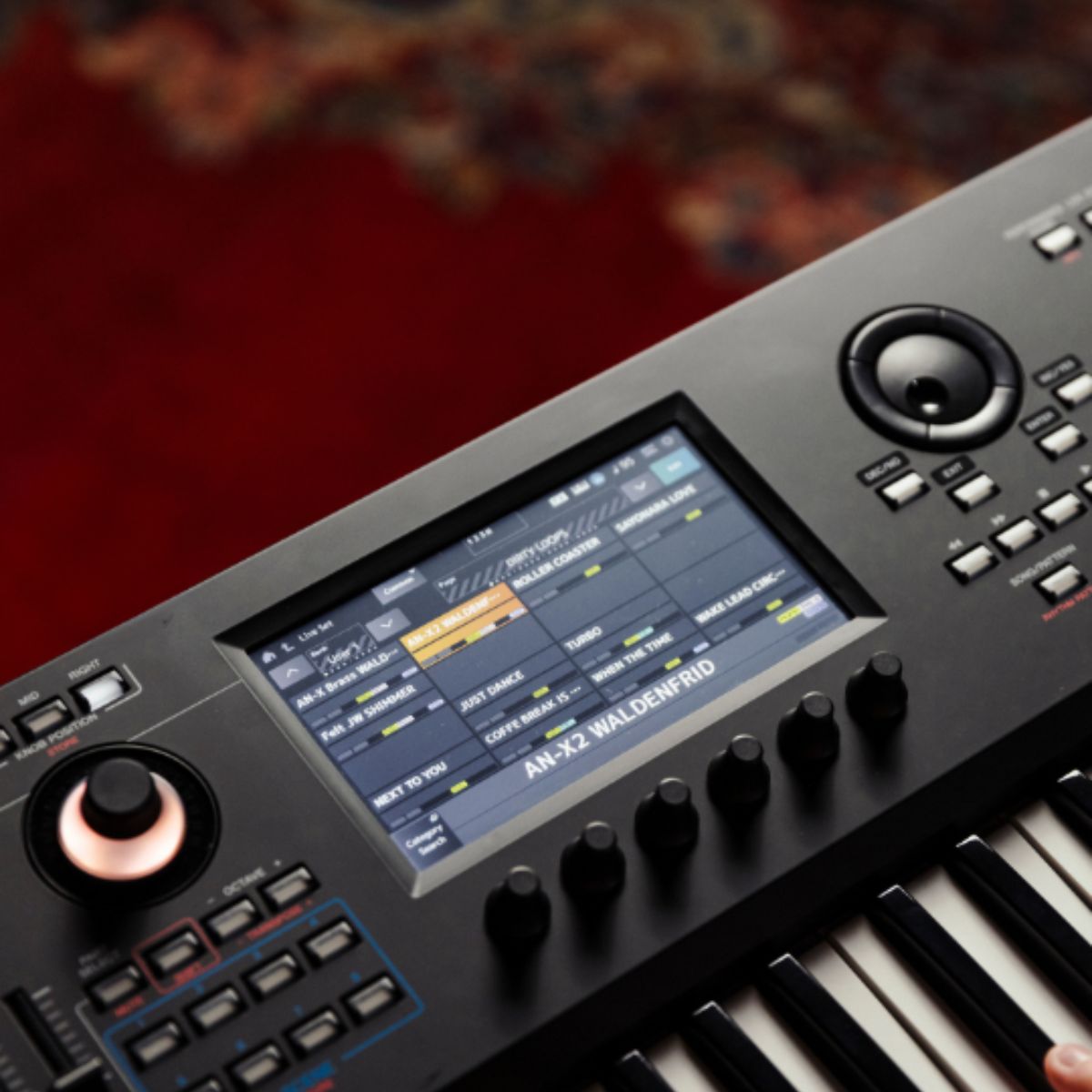

• 7″ TFT colour wide VGA LCD touchscreen

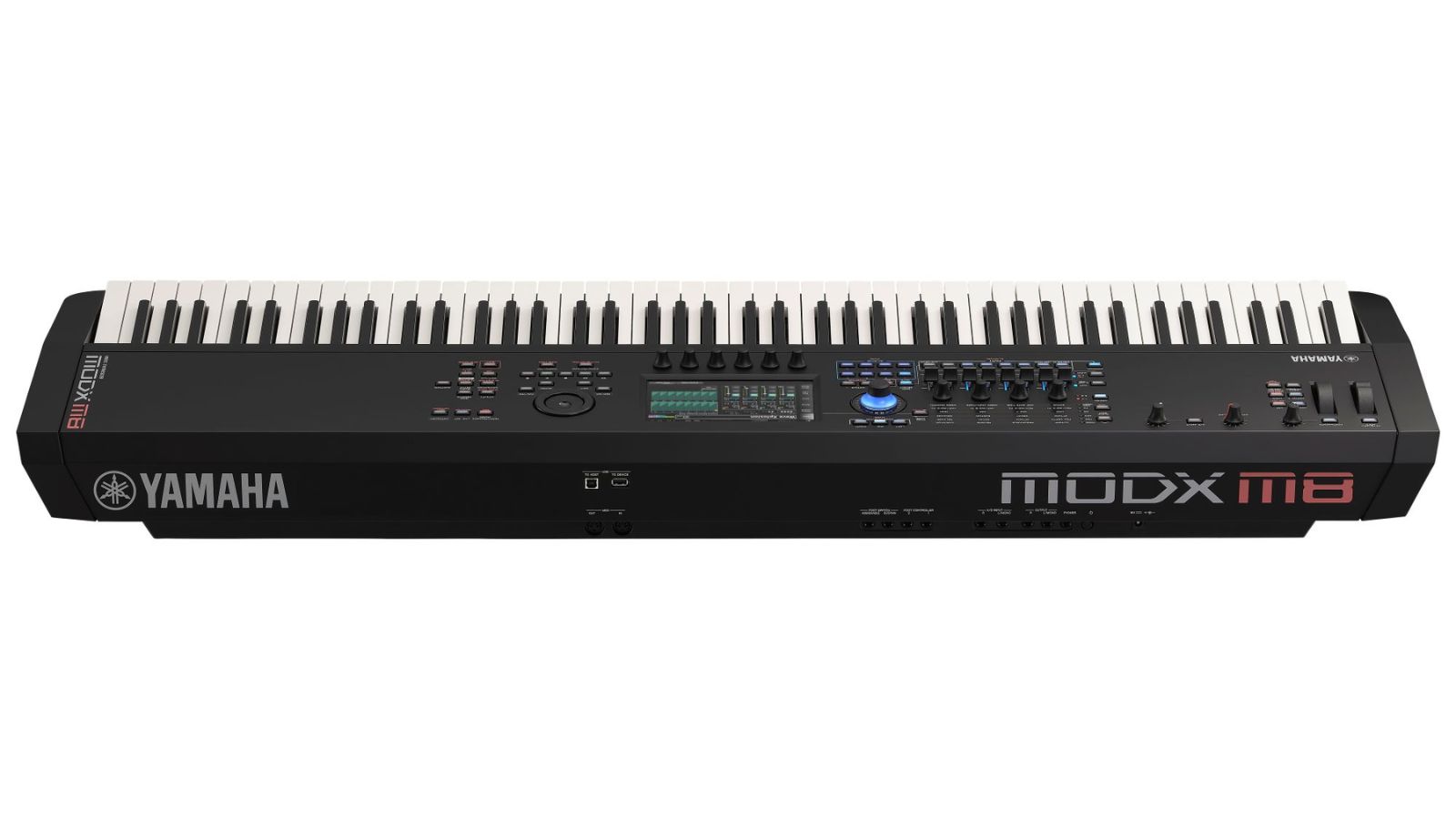

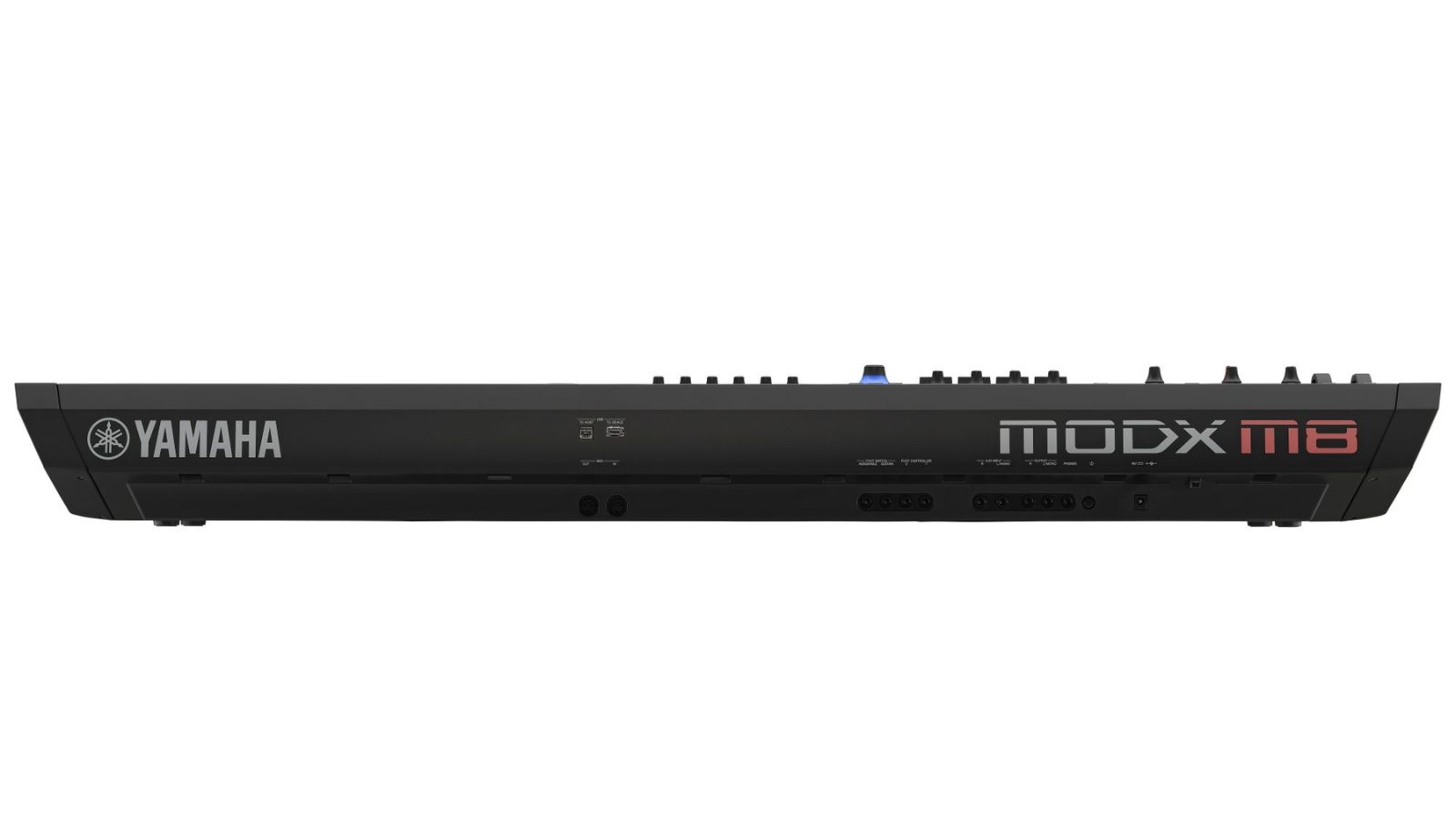

Connectivity

• OUTPUT [L/MONO], [R]
• A/D INPUT [L/MONO], [R] (6.3 mm TRS jacks)
• PHONES (stereo 6.3 mm jack)
• MIDI IN/OUT
• FOOT CONTROLLER 1 / 2
• FOOT SWITCH (Sustain / Assignable)

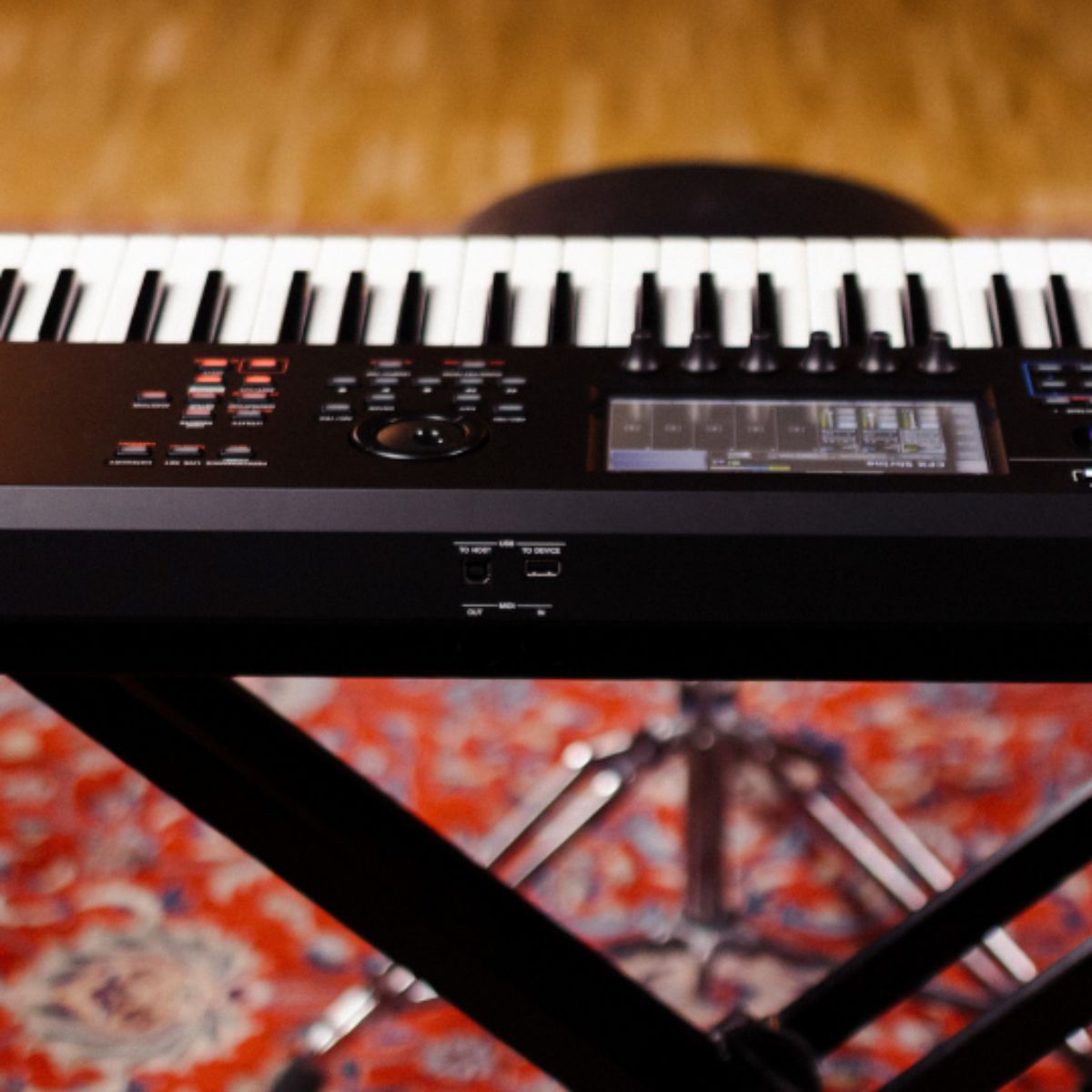

• USB TO DEVICE
• USB TO HOST (4 channels input, 10 channels output @ 44.1 kHz)

Dimensions & Weight

• MODX M8: 1,310 × 391 × 152 mm
• Weight: 13.6 kg

Included Accessories

• Quick Guide
• AC Power Adaptor
• Cubase AI Download

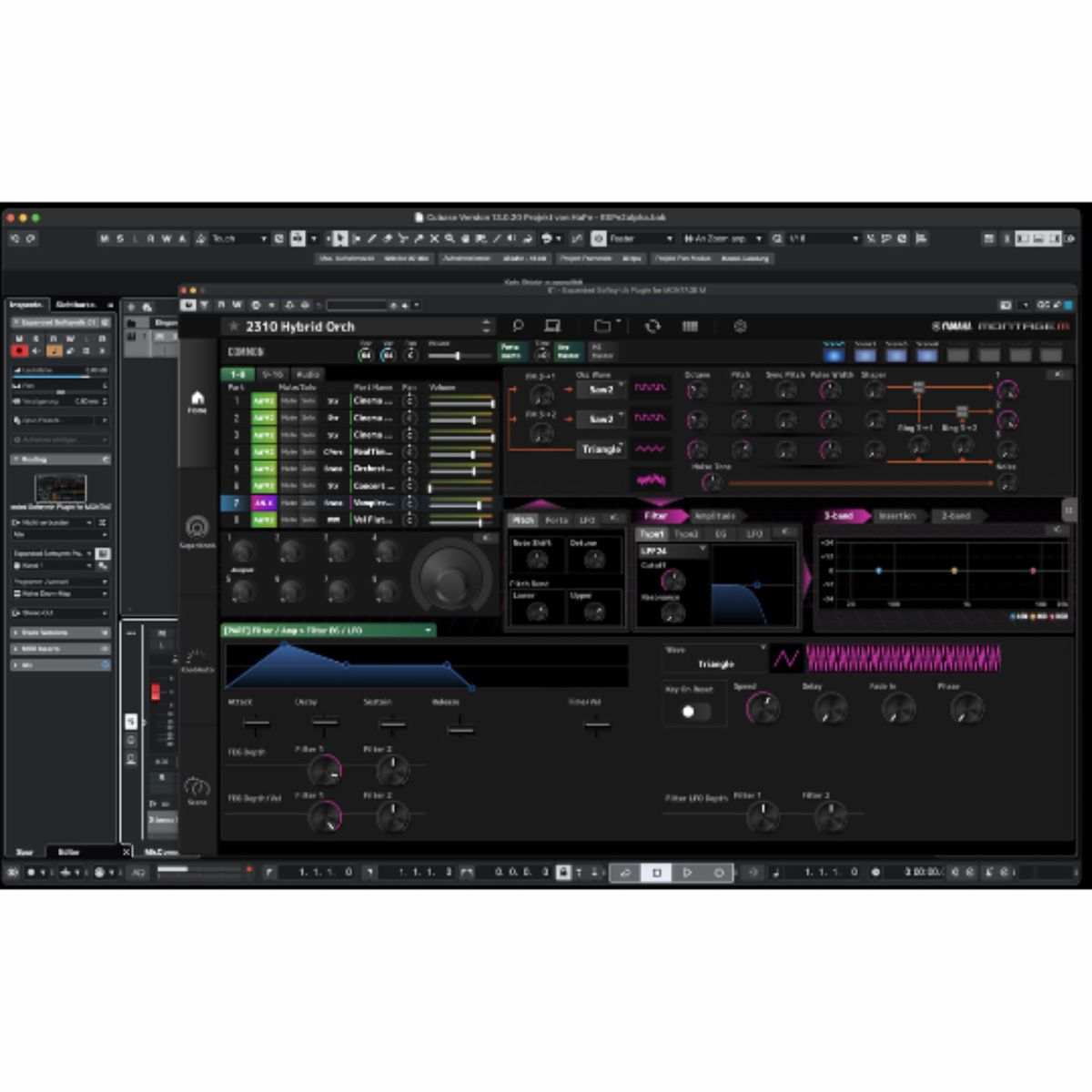

• Expanded Softsynth Plugin (ESP) Download Code

Optional extra

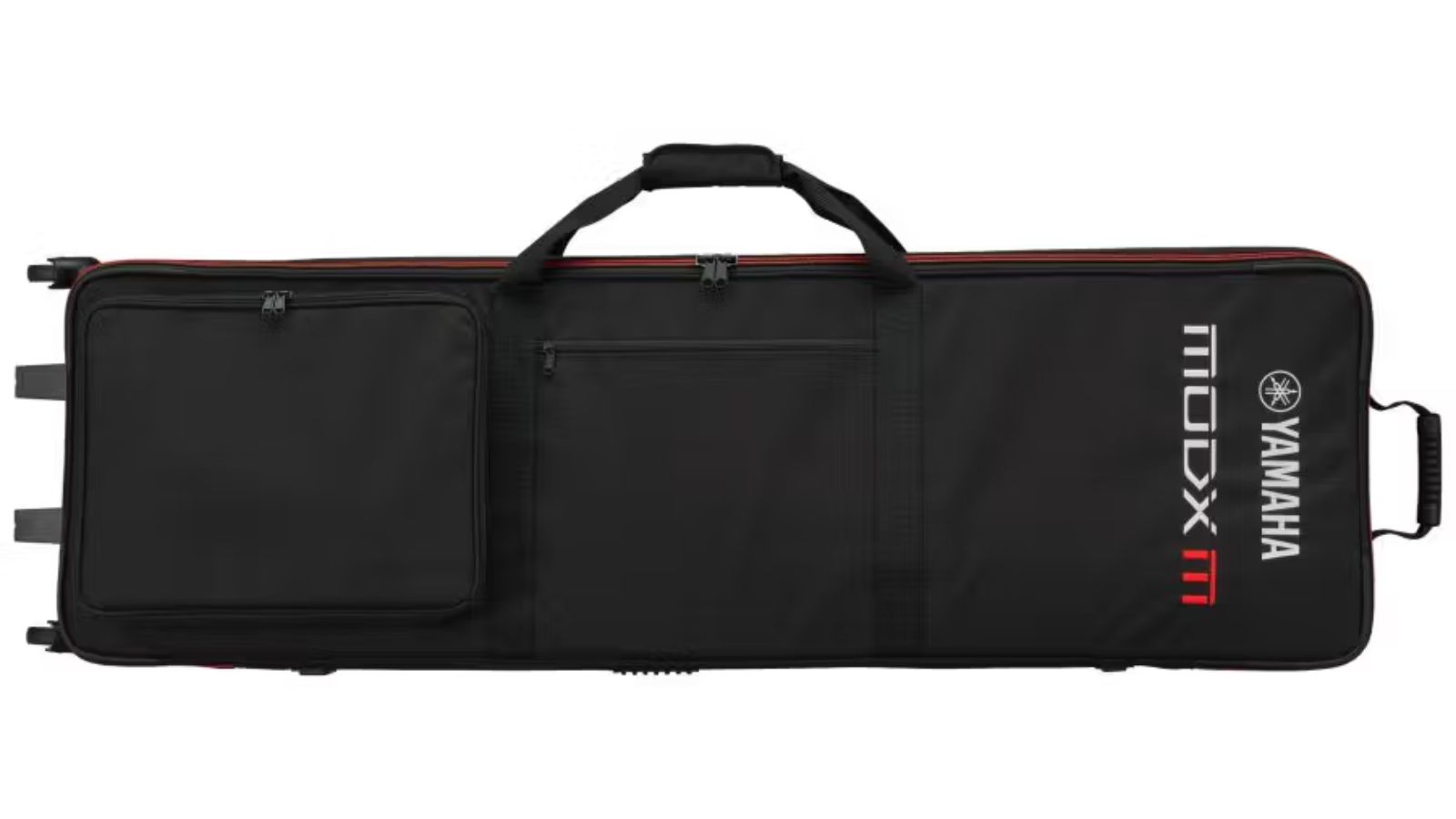

07BYAM-MODX M8 SOFTCASE

The premium soft case for MODX M is protective, lightweight and stylish, high-quality zippers, pockets for pedals and cables and a luxurious inside.
