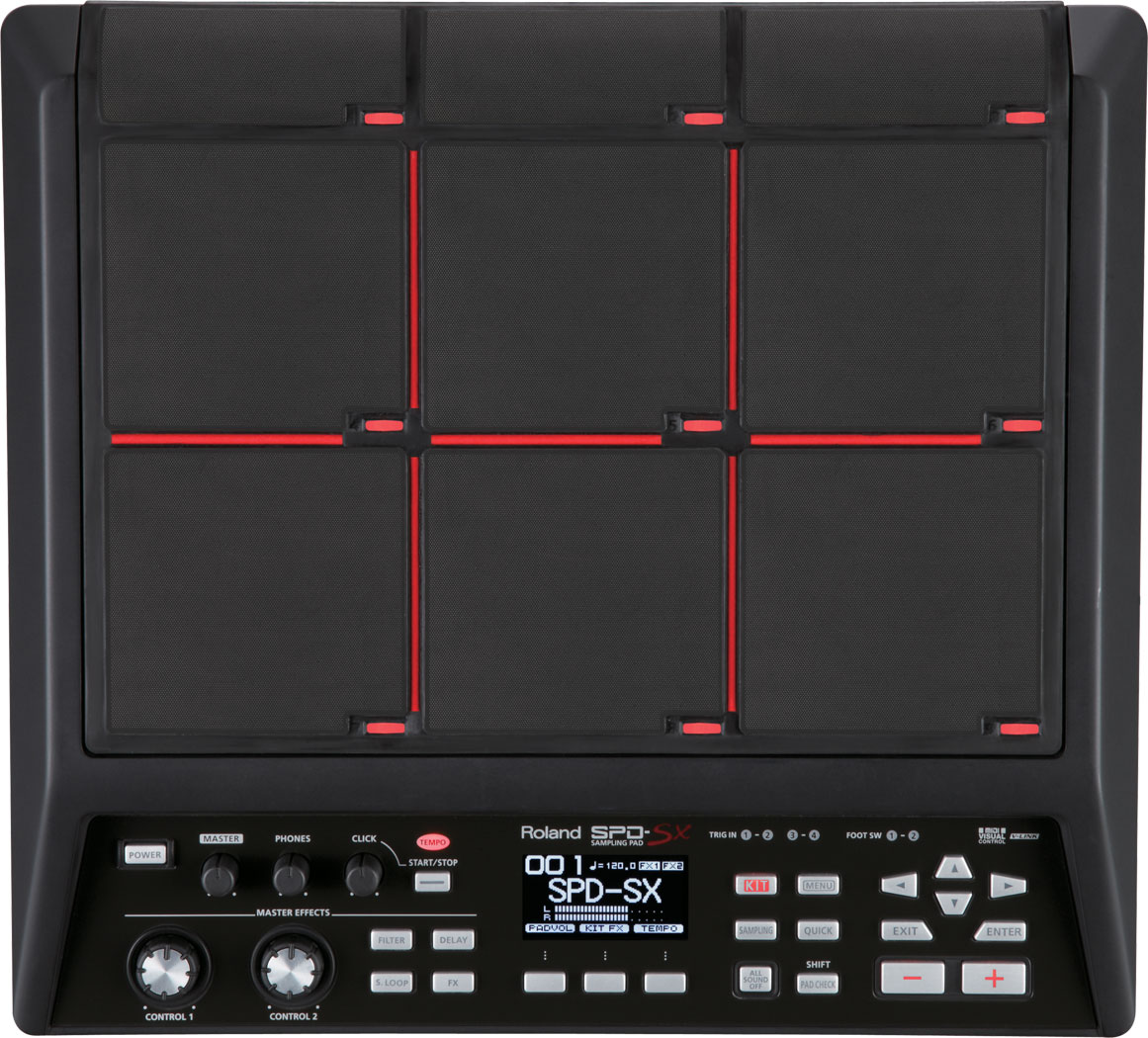

Roland SPD-SX Sampling Pad

Name: Roland SPD-SX Sampling Pad
SKU: 13AROL-SPDSX
Price: 827.00 EUR
Availability: OutOfStock

0 out of 5

Not reviewed

Add a Review

€827.00

With 16 GB of storage, the SPD-SX supports up to 25 hours of stereo audio (50 hours of mono) The pad comes pre-loaded with 210 samples

Out of Stock

Product No. 13AROL-SPDSX

Description
Specifications

A pad-based sampling instrument with innovative audio-capturing features, three multi-effects engines, and more.

The Ultimate Percussive Sampling Instrument

The new SPD-SX Sampling Pad puts powerful sample creation and playback under your sticks with innovative audio-capturing features, expressive playability, three multi-effects engines, and much more. The perfect addition to any acoustic or electronic drum kit, percussion setup, DJ booth, or keyboard rig, the SPD-SX is equally at home on the live stage, in the recording studio, pre-production suite, or dance club. The SPD-SX takes many of the proven concepts from its predecessor and raises them to a new level. Whether you’re firing off one-shot samples, looped phrases, or complete audio playback tracks, the SPD-SX is loaded with the latest technology and tools to get the job done with speed, precision, and convenience. Enjoy the most advanced triggering and sampling technology in a sleek, easy-to-use percussion instrument.

Unique sampling-pad concept — the only instrument of its kind in the world
2 GB internal memory, enabling approximately 360 minutes of sampling (mono) without requiring external memory
Nine velocity-sensitive rubber pads, two external dual-trigger inputs
Easy capturing and assignment of audio data through Multi-Pad Sampling
Three units of multi-effects onboard, with two real-time control knobs and four dedicated effect buttons
Individual Pad Dynamics indicators show pad status and audio-level activity during performance
Expanded USB functionality (USB Mass Storage, USB MIDI/AUDIO, USB Memory)
Wave Manager software included for easily importing, assigning, and organizing samples
Large backlit LCD

Pads: Built-in Pads: 9 (with LED Indicators) * Two external trigger inputs are provided, allowing you to connect up to four Pads.
Maximum Polyphony: 20 voices * Maximum polyphony becomes 16 voices according as an operating state.
Number of Recordable Wave Data: 10,000 * Including preload wave data.
Sampling Time (Total time for all wave data): Approx. 180 min. in stereo (360 min. in mono) * Since the internal memory included with the SPD-SX contains preload data, the available sampling time will be less than the time above.
Data Format: 16-bit linear PCM (WAV/AIFF)
Sampling Frequency: 44.1 kHz
Kits: 100
Kit Chain: 8 chains (20 steps per chain)
Effects: Master Effects (21 Types) Equalizer Kit Effect 1 (20 Types) Kit Effect 2 (20 Types)
Display: Graphic LCD 128 x 64 dots
Connectors: PHONES jack (Stereo 1/4-inch phone type) MASTER OUT jacks (L/MONO, R) (1/4-inch phone type) SUB OUT jacks (L/MONO, R) (1/4-inch phone type) AUDIO IN jacks (L/MONO, R) (1/4-inch phone type) (with LINE-MIC GAIN control) TRIG IN jacks (1/2, 3/4) (1/4-inch TRS phone type) FOOT SW jack (1/2) (1/4-inch TRS phone type) MIDI connectors (IN, OUT) DC IN jack COMPUTER connector USB MEMORY connector
Interface: Hi-Speed USB (USB-MIDI, USB-AUDIO, USB Mass Storage Class, USB Flash Drive)
Power Supply: DC 9 V (AC Adaptor)
Current Draw: 600 mA
Accessories: CD-ROM (SPD-SX Wave Manager, USB driver, preload wave data) Owner's Manual AC Adaptor
Options (sold separately): Pads (PD series, PDX series) Cymbals (CY series) Kick Triggers (KD series) Pad Stand (PDS-10) All-Purpose Clamp (APC-33) Acoustic Drum Trigger (RT-10K,RT-10S, RT-10T) Pedal Switch (DP-2) Footswitch (BOSS FS-5U, BOSS FS-6) Personal Drum Monitor (PM-10, PM-30) USB Flash Memory * Use USB Flash Memory sold by Roland. We cannot guarantee operation if other products are used.
Size and Weight
Width: 363.7 mm
14-6/16 inches
Depth: 331.0 mm
13-1/16 inches
Height: 94.1 mm
3-3/4 inches
Weight: 2.5 kg
5 lbs. 9 oz.
Weight: excluding AC Adaptor
